| Place of Origin: | China |
| Brand Name: | Surplus |
| Certification: | ISO9001 |
| Model Number: | Heaters For Semiconductors 08 |
Our thermal solutions and power supplies meet the stringent cleanroom and ultra-high-purity (UHP) process requirements of the Semiconductor and Wafer Processing industries.

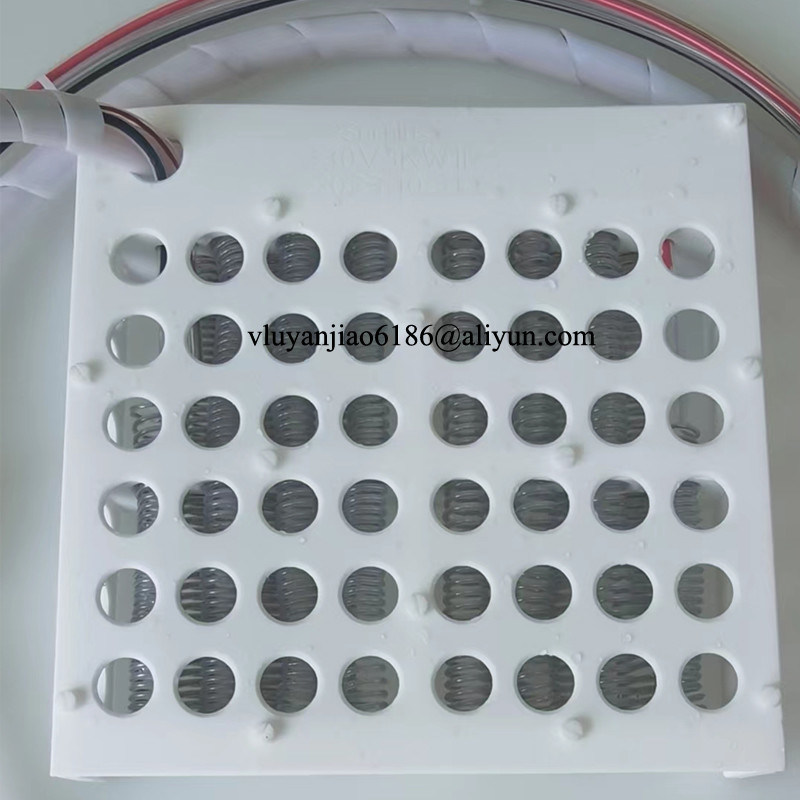

These immersion heaters provide clean, even heat distribution for fluid baths in semiconductor, pharmaceutical, and biomedical applications. Their compact design offers maximum process area with minimal chemical consumption.
All wetted surfaces feature PFA materials, compatible with PVDF, PFA, or quartz tanks. Custom configurations available for other tank materials.
Rugged heaters available in grid, frame, and fence models (1.0 to 30.0 kW output) with low watt density (≤ 4 watts/in²) for rapid heating response. Easily integrated into most process tanks.
| Feature | Specification |
|---|---|
| Heater Element | Heating Coil |
| Wetted Surfaces | PFA/PTFE |
| Wattages | 1.0 - 20 kW |
| Voltages | 120 - 480 VAC (1 or 3 phase) |
| Temperature | 200°C (392°F) |
| Hi-Limit Sensor | Type-J thermocouple |
We offer custom PTFE-lined tanks, vessels, and mixers with acid/alkali resistance and high temperature tolerance. Available materials include PTFE, PFA, FEP, ECTFE, and PVDF with glass backing.
Our products support electrochemical deposition processes with high-efficiency DC output, reliability, and ETL certification.
| Product Series | Description |
|---|---|
| HXSL SERIES |
Custom PTFE sleeved bottom heater with flexible riser (1000-6000W, 120-600V) |
| HXRL SERIES |
PTFE sleeved bottom heater with flexible riser (1000-6000W, 120-600V) |
| HXO SERIES |
O-shaped PTFE sleeved 304 stainless elements (500-9000W, 120-600V) |
