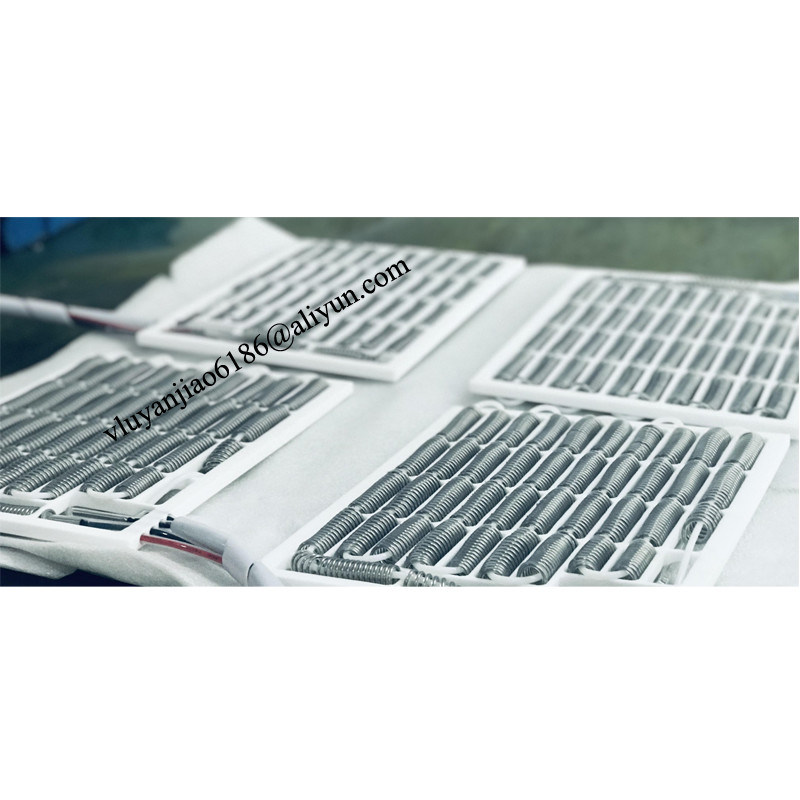

PTFE Submersible Semiconductor Heater 110V - 480V For Wet Processes
PTFE Submersible Semiconductor Heater For Wet Processes Utilizing Deionized Water
Voltage: 110V-480V
Power: 3KW-36KW/Set
Dimension: According the tanks size
Material: PTFE+PFA heating wire
Usage: Put on the bottom of the chemical tank to heating up the tank solutions.
Industries
Semiconductor
Ultra-High-Purity Solutions
Surplus designs and manufactures thermal solutions and power supplies to meet the most stringent cleanroom, ultra-high-purity (UHP) processes, and customer requirements of the Semiconductor and Wafer Processing industries.
Applications
- Wet-Deposition
- Flammable Solvent Heating
- Chemical Heating
- RO/DI Water Heating
- Ultra-High-Purity Heating
PRODUCT OVERVIEW
Heaters For Semiconductor are great for heating fluid baths to a constant temperature. These heaters are ideal for use in the semiconductor, pharmaceutical, and biomedical industries. First of all, these immersion heaters provide clean heat evenly and efficiently. Furthermore, they're compact and highly customizable. They provide a maximum process work area, and consume a minimal amount of chemicals. Moreover, wetted surfaces feature all-PFA materials, and may be used in tanks made of PVDF, PFA, or quartz. Please contact us with inquiries about other tank materials.
BOTH AGGRESSIVE CHEMISTRIES AND DEIONIZED WATER
These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW. Most importantly, they feature a low watt density (≤ 4 watts/in²) for a fast heating response. Furthermore, these heaters integrate easily into most process tanks. Provide Surplus with your specifications and tank size, and let us build an immersion heater for you.
SAFETY FEATURES
At the heart of these immersion heaters is the patented PreciseHeater heating coil, with a efficiency of > 99% and a MTBF of more than 10 years. Moreover, a microprocessor-based temperature controller regulates the heater output. Additionally, optional safety features include both platinum and embedded ground wires, a Type-J process thermocouple, and RTD over-temperature and process thermocouples.
KEY SPECIFICATIONS
Maximum heating temperature of these immersion heaters is 200º C (392º F), with a temperature accuracy of ± 0.1º C (contingent on customer's facilitation). Grid heaters are typically ¾" high, and frame heaters 1 ½" high. Outputs range from 1.0 to 30.0 kW (dependent on customer voltage), and from 120 VAC to 480 VAC, 1 or 3-ph (dependent on wattage).
Specifications
| Heater Element |
Heating Coil |
| Wetted Surfaces |
PFA/PTFE |
| Wattages |
1.0 - 20 kW |
| Voltages |
120 - 480 VAC
1 or 3 phase |
| Sizes (LxW) |
7x5 to 19x14 inch |
| Height |
1-5/8 inch |
| Temperature |
200°C (392°F) |
| Hi-Limit Sensor |
Type-J thermocouple |
| Ground Wire |
Encapsulated |
| Lead Wire |
15-ft |
Other Applications (Other products)
PTFE Tanks
We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used: PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.
Can store acid or alkali
high temperature resistance
Can custom sizes or even install PFA outlet and PFA inlet
Anodizing
Anodizing is an electrochemical process of converting a metal surface into an oxide layer. Mainly aluminum is used for anodizing, although other nonferrous metals, such as titanium and magnesium, can also be anodized. The metal part is connected as the anode and immersed into an acid electrolyte bath, where an electric current is applied to grow the oxide layer from the piece. The resulting surface finish will provide functional properties as corrosion-resistance and durability, as well as decorative properties. Surplus heaters provide beautiful, precise finishes. Surplus power supplies deliver high current, high accuracy, and high energy efficiency to meet a modern anodizing process's requirements.
Products For Anodizing
| MOTS SINGLE - BOTTOM, DERATED |
MOTS TRIPLE - L SHAPED |
6HS SERIES - TUBULAR |
| Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts. |
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts. |
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts. |
 |
|
|
