PTFE Heat Exchanger For Heating And Cooling Ultra Pure And Highly Corrosive Fluids

Name: PTFE Heat Exchanger For Heating And Cooling Ultra Pure And Highly Corrosive Fluids
Brand: Yingxi Trading Company
SKU: PTFE HE-036
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	PTFE HE-036

Detail Information

Place of Origin:

China

Brand Name:

Surplus

Certification:

ISO9001,CE

Model Number:

PTFE HE-036

Name:

PTFE Heat Exchanger For Heating And Cooling Ultra Pure And Highly Corrosive Fluids

Frame Material:

PTFE

Tube Material:

PFA

Size:

Can Designed As Requirements

Trading Information

Minimum Order Quantity:

1 PCS

Price:

Negotiable

Packaging Details:

Wooden Case or Carton Box

Delivery Time:

10-15 working days

Payment Terms:

T/T,

Supply Ability:

50 PC/Month

Product Description

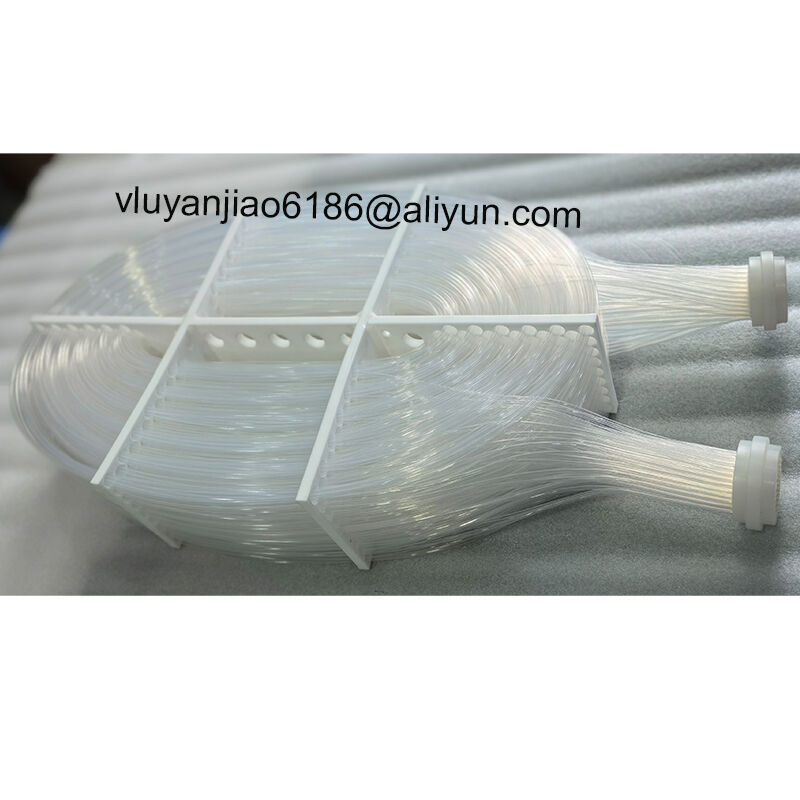

PTFE Heat Exchanger For Heating And Cooling Ultra Pure And Highly Corrosive Fluids

Features & Values

All wetted parts of fluoropolymer(FEP,PFA or PTFE) construction with a PVDF/PTFE/PP Frame.
Heavy wall tubing improves circulation and minimizes pressure drop
Larger coils constructed of 1/2 inch(13mm) tubing, smaller coils have 1/4 inch(7mm) tubing
Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation
Eliminates stray currents in the tank

Product Specifications

Batch Process Cooling:

Process Chemical

Shell Material:

PTFE (Excellent Corrosion Resistance & Thermal Expansion Resistance)

Flange:

Equipped with PCW In/Out Fitting In One Body

Heat Transfer Area:

5.5m2 or others

Configuration:

Horizontal

Dimension:

can designed

Gravity Feed Rate:

50L/2.5Min

Volume:

20 Liter

Connection:

1" for Chemical, 1" for PCW

A PTFE (Teflon) heat exchanger is a specialized industrial device featuring fluoroplastic tubing designed for extreme chemical resistance, non-stick anti-fouling surfaces, and operational temperature tolerances ranging from -200°C up to 260°C. They are widely deployed where traditional metal units fail due to aggressive acids or ultra-pure fluid requirements.

Key Characteristics & Benefits
Corrosion Resistance: Inert to almost all strong acids, strong bases, and organic solvents.
Anti-Fouling: Smooth non-stick surface prevents scale accumulation and biological growth.
Flexibility: Pliable tube bundles resist fluid impacts, vibrations, and thermal shock.
Common Applications
Chemical Processing: Heating or cooling corrosive chemical baths and acid-washing loops.
Flue Gas Desulfurization (FGD): Recovering waste heat and scrubbing acidic exhaust gases in power plants.
Semiconductor Industry: Maintaining ultra-high purity during chemical fluid management.

If you would like to proceed, please let me know:
The chemical media or fluid you need to process
The required operating temperature and pressure
Whether you need an immersion coil or a shell-and-tube design

Other Applications

Precious Metal Deposition

Engineered to meet the most stringent requirements, accurate and reliable Heaters in Precious Metals' Deposition reduce materials waste. Low ripple Power Supplies provide clean and smooth direct current (DC), precision results while also saving on materials.

Products For General Metal Finishing

MOTS SINGLE - BOTTOM, DERATED

Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

MOTS TRIPLE - L SHAPED

L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

9HX SERIES

Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.

6HX SERIES

Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.

Anodizing

Anodizing is an electrochemical process of converting a metal surface into an oxide layer. Mainly aluminum is used for anodizing, although other nonferrous metals, such as titanium and magnesium, can also be anodized. The metal part is connected as the anode and immersed into an acid electrolyte bath, where an electric current is applied to grow the oxide layer from the piece. The resulting surface finish will provide functional properties as corrosion-resistance and durability, as well as decorative properties. Surplus heaters provide beautiful, precise finishes. Surplus power supplies deliver high current, high accuracy, and high energy efficiency to meet a modern anodizing process's requirements.

Products For Anodizing

MOTS SINGLE - BOTTOM, DERATED

Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

MOTS TRIPLE - L SHAPED

L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

6HS SERIES - TUBULAR

Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

MOTS TRIPLE - DEEP TANK

Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.

6HX SERIES

Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 3000-18000 watts, 208-480 volts.

HXF SERIES

Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.

HX SERIES

Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Single phase. 500-9000 watts, 120-600 volts.

3HX SERIES

Low watt density, 3 element heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 1000-6000 watts, 120-600 volts.
