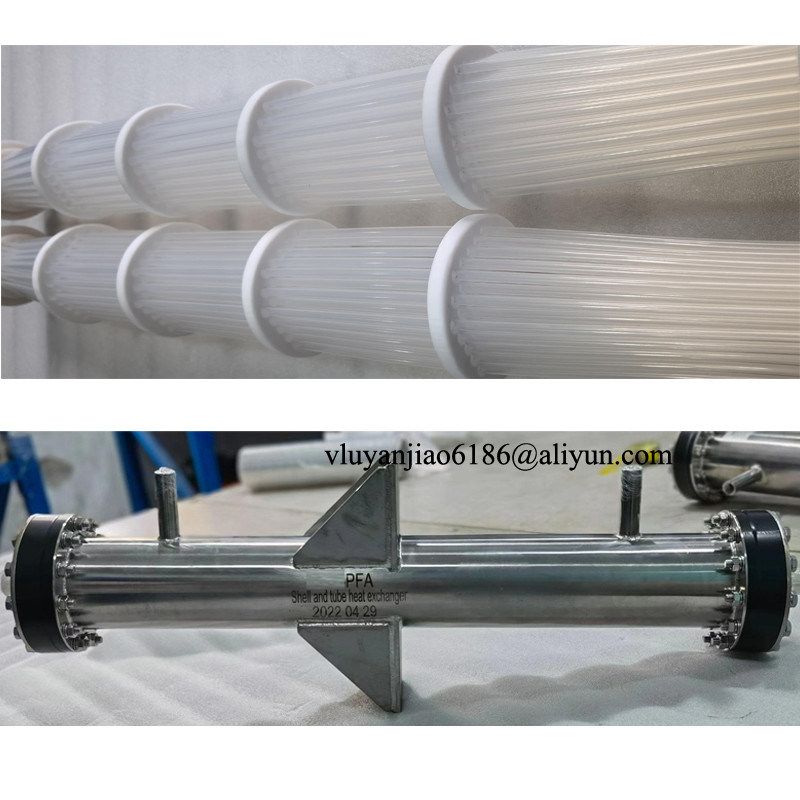

Custom Robust PTFE Heat Exchanger 30 PSI With Heavy Duty CPVC Mounting Bracket

This robust design PTFE heat exchanger features a heavy-duty CPVC mounting bracket and 1/4-inch construction for smaller coils, offering excellent chemical compatibility and rugged performance for heating or cooling applications.

• All wetted parts constructed from fluoropolymer (FEP, PFA or PTFE)
• Eliminates stray currents in tanks
• PFA coils available for steam service up to 60 PSI
• 10 PSI minimum steam pressure required for operation

The coil is designed to eliminate stray currents while offering excellent chemical compatibility with a rugged design ideal for demanding heating or cooling applications.

• Heavy-duty CPVC mounting bracket provides robust support
• Standard FEP coils rated for up to 30 PSI steam service
• PFA coils handle up to 60 PSI steam pressure
• Heavy wall tubing improves circulation and reduces pressure drop
• 1/8-inch perforated guard offers protection from damage
• Integral inlet/outlet connections reduce potential leaks

Note: Vacuum breakers are recommended for fluoropolymer heat coil steam heating installations.

• All wetted parts constructed from durable fluoropolymer materials
• Heavy wall tubing (1/2-inch for larger coils, 1/4-inch for smaller coils)
• Integral inlet and outlet manifolds for single point connections
• Eliminates stray currents in the tank

Engineered to meet stringent requirements, these heaters reduce materials waste in precious metal deposition processes. Low ripple power supplies provide clean, smooth DC for precision results.

MOTS SINGLE Heater Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.	MOTS SINGLE - DAS, PHOSPHATE Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.	MOTS TRIPLE - L SHAPED, DERATED Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.
MOTS SINGLE - BOTTOM, DERATED Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. 500-6000 watts, 120-480 volts.	MOTS TRIPLE - L SHAPED L-shaped, bottom style metal over the side heater. Three phase. 3000-36000 watts, 200-600 volts.	6HS SERIES - TUBULAR Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

• Fluid Heating: Precision heating for various chemical and plating solutions
• Filtration: Temperature control in filtration processes
• Sterilization & Cleaning: High-performance heating for sterilization applications

Our patented ultra-pure precision heaters are designed for heating chemical solutions, gases, solvents and deionized water. Engineered with PFA heating technology, these heaters feature a small mass with large surface area for faster response and longer life at elevated temperatures.
