Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger
Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger
  • Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger
  • Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger

Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001,CE
Model Number: PTFE Heat Exchanger 07
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001,CE
Model Number:
PTFE Heat Exchanger 07
Name:
Hot Sulfuric Acid (150 °C) Disposal Coller Immersion PTFE Heat Exchanger
Frame Material:
PTFE,PP,PVC,PVDF
Tube Material:
PFA,PTFE,FEP
Connections:
1/2" FNPT Or Others
Pressure:
30 PSI
Size:
Can Designed As Requirements
Highlight:

High Light

Highlight:

Hot Sulfuric Acid Heat Exchanger

,

Teflon Immersion Heat Exchanger

,

Rugged Immersion Heat Exchanger

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Negotiable
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
T/T,
Supply Ability:
50 PC/Month
Product Description

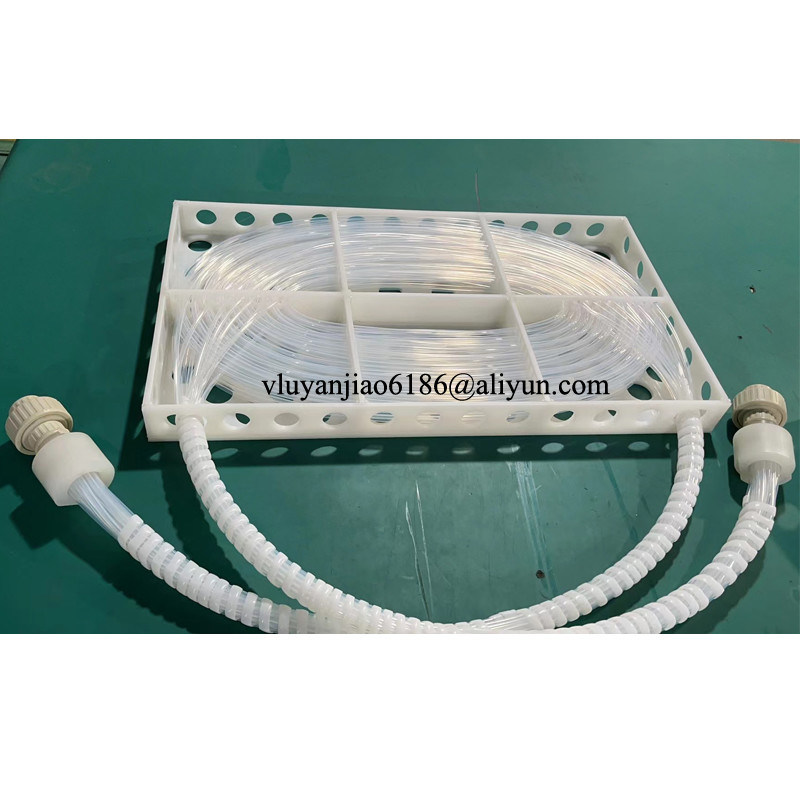

Hot Sulfuric Acid (150°C) Disposal Cooler Immersion PTFE Heat Exchanger
Excellent chemical compatibility and rugged design for your heating or cooling application. All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction. Eliminates stray currents. PFA coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation.
Robust Design
The Coil is designed to eliminate stray currents in tanks and offers excellent chemical compatibility with a rugged design ideal for heating or cooling applications.
  • All wetted parts are constructed from durable fluoropolymer materials (FEP, PFA, or PTFE)
  • Heavy-duty CPVC mounting bracket provides robust support
  • Standard FEP coils rated for up to 30 PSI steam service
  • PFA coils can handle up to 60 PSI steam pressure
  • Heavy wall tubing improves circulation and reduces pressure drop
  • 1/8-inch perforated guard offers protection from damage
  • Integral inlet/outlet connections reduce potential leaks
Vacuum breakers are recommended for fluoropolymer heat coil steam heating installations.
Features & Values
  • All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction with heavy duty CPVC mounting bracket
  • Heavy wall tubing improves circulation and minimizes pressure drop
  • Larger coils constructed of 1/2 inch (13mm) tubing, smaller coils have 1/4 inch (7mm) tubing
  • Integral inlet and outlet manifolds for single point connections
  • Eliminates stray currents in the tank
Industries
Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing
Acid Heating And Corrosive Chemical Heating
Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.
3HX Series HXT SERIES - SCREWPLUG 9HX SERIES
Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger 0 Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger 1 Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger 2
6HX SERIES 3HXOL SERIES HXSL SERIES
Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger 3 Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger 4 Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger 5
Chemical Heating
Fluoropolymer (PTFE) heater and heating components are engineered with protection from corrosive chemicals while maintaining the highest quality and safety standards.
HXT SERIES - SCREWPLUG
Low watt density, spiral screwplug heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.
Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger 6
HXOL SERIES
Low watt density, flexible riser, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.
Hot Sulfuric Acid Heat Exchanger Rugged Teflon Immersion Heat Exchanger 7
