Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor
Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor
  • Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor
  • Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor

Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001,CE
Model Number: PTFE Heat Exchanger 15
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001,CE
Model Number:
PTFE Heat Exchanger 15
Name:
Surface Finishing,Chemical And Semiconductor Immersion Tube PTFE Heat Exchanger
Frame Material:
PTFE,PP,PVC,PVDF
Tube Material:
PFA,PTFE,FEP
Connections:
1/2" FNPT Or Others
Pressure:
30 PSI
Size:
Can Designed As Requirements
Highlight:

High Light

Highlight:

Customized PTFE Tube Heat Exchanger

,

Immersion PTFE Tube Heat Exchanger

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Negotiable
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
T/T,
Supply Ability:
50 PC/Month
Product Description
Customized Immersion PTFE Tube Heat Exchanger for Chemical and Semiconductor
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Our products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
Electrochemical Deposition Products
MOTS TRIPLE - VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.
Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor 0
9HS SERIES - TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.
Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor 1
V SERIES - VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.
Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor 2
MOTS SINGLE
MOTS Single Heater - Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.
Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor 3
MOTS SINGLE - DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater - Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.
Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor 4
MOTS TRIPLE - L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.
Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor 5
Surface Finishing, Chemical and Semiconductor Immersion Tube PTFE Heat Exchanger
PTFE is the only viable option for a heat exchanger assembly. With the proper fabrication and right materials, it offers a very effective, durable, and versatile solution for all industries where heat exchangers are needed.
Customized Immersion PTFE Tube Heat Exchanger For Chemical And Semiconductor 6
Product Description

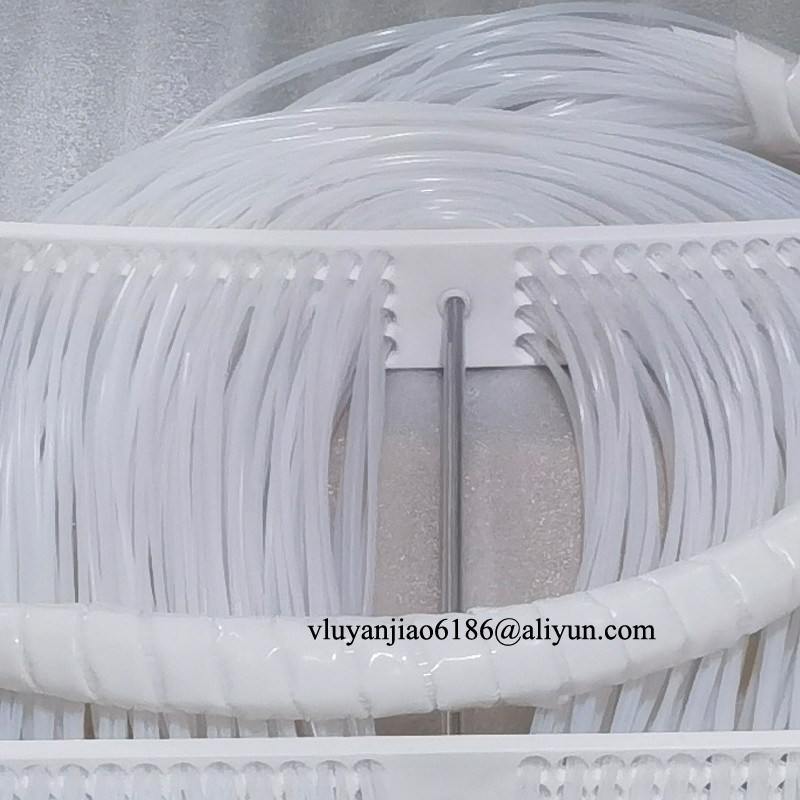

  • PTFE heat exchanger uses cluster tube structure for excellent heat dissipation, typically using capillary tubes as heat exchange tubes with outer diameters of 4.5-8mm. The number of tubes ranges from dozens to hundreds depending on required heat exchange area.
  • Frame materials are selected based on environment: PP, PVC, or PVDF material. Three grades of PTFE, PFA and FEP are available.
  • PP and PVDF materials are suitable for circulation medium of hot water, ice water or steam heating temperature within 70°C. PVDF is suitable for steam as heating medium not exceeding 150°C liquid.
  • The heat exchanger features Teflon thin-wall capillary structure with good thermal conductivity, pressure resistance, stable operation, anti-aging properties and long service life, suitable for highly corrosive liquid heat exchange.
  • Capillary tube design requires decompression and filter configuration at inlet pipe to prevent blockage and ensure optimal performance.
Industries
Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing
Other Applications
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Our products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Tags:

Immersion Heat Exchanger,

Immersion Coil Heat Exchanger,

PTFE Tube Heat Exchanger
