High Efficiency Plate PTFE Chemical Heat Exchanger For Cooling Plating Solutions

Name: High Efficiency Plate PTFE Chemical Heat Exchanger For Cooling Plating Solutions
Brand: Yingxi Trading Company
SKU: PTFE Heat Exchanger 17
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	PTFE Heat Exchanger 17

Detail Information

Place of Origin:

China

Brand Name:

Surplus

Certification:

ISO9001,CE

Model Number:

PTFE Heat Exchanger 17

Name:

High Efficiency Plate PTFE Heat Exchanger For Cooling Plating Solutions

Frame Material:

PTFE,PP,PVC,PVDF

Tube Material:

PFA,PTFE,FEP

Connections:

1/2" FNPT Or Others

Pressure:

30 PSI

Size:

Can Designed As Requirements

Highlight:

High Light

Highlight:

High Efficiency Chemical Heat Exchanger

Plate PTFE Chemical Heat Exchanger

Trading Information

Minimum Order Quantity:

1 PCS

Price:

Negotiable

Packaging Details:

Wooden Case or Carton Box

Delivery Time:

10-15 working days

Payment Terms:

T/T,

Supply Ability:

50 PC/Month

Product Description

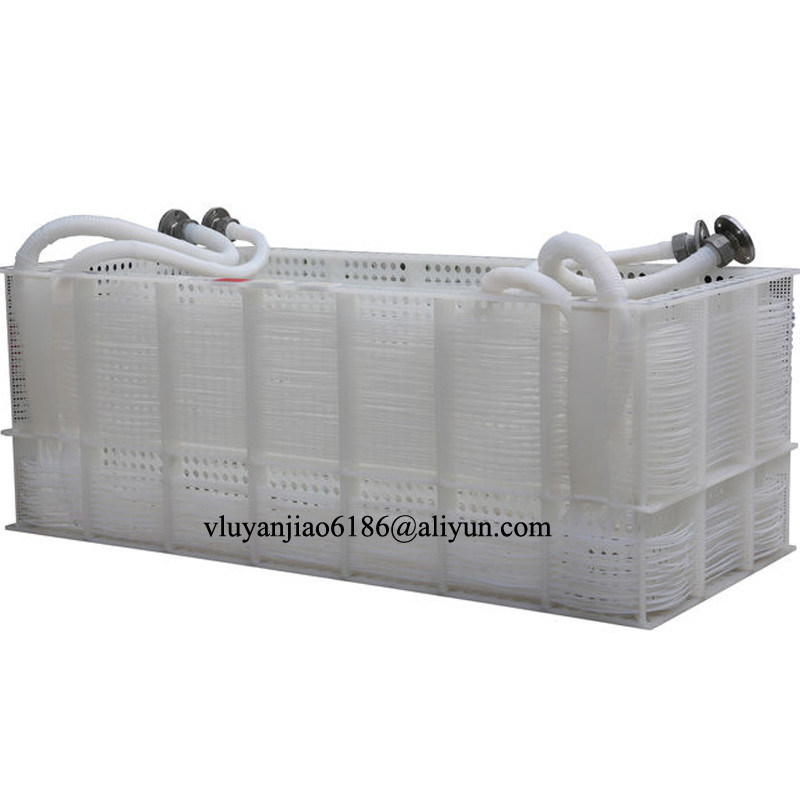

High Efficiency Plate PTFE Chemical Heat Exchanger For Cooling Plating Solutions

Superior Chemical Resistance

For heating or cooling of most aqueous acid and alkaline solutions. Check solution guide or consult with your chemical supplier for proper sheath material selection.

Rugged Construction

All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction
Heavy duty CPVC mounting bracket
1/8-inch thick perforated guard helps protect the coil from damage

Outstanding Performance

Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of ½-inch (13mm) tubing, smaller coils have ¼-inch (7mm) tubing.

The heat exchanger adopts Teflon thin-wall capillary structure, featuring good thermal conductivity, excellent pressure resistance, stable operation, anti-aging properties, and long service life. Suitable for various highly corrosive liquid heat exchange applications.

This product uses capillary tubes. To avoid pipeline blockage, a decompression and filter should be installed before the inlet pipe to ensure optimal performance.

Industries

Semiconductor Fabrication Solar Cell Manufacturing Flat-Panel Display, LEDs & Electronics Chemicals Manufacturing Industrial Manufacturing

Other Applications

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Our products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition Products

MOTS SINGLE - BOTTOM, DERATED Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.	MOTS TRIPLE - L SHAPED L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.	6HS SERIES - TUBULAR Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
MOTS TRIPLE - DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.	MOTS TRIPLE - DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.	MOTS TRIPLE Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.
