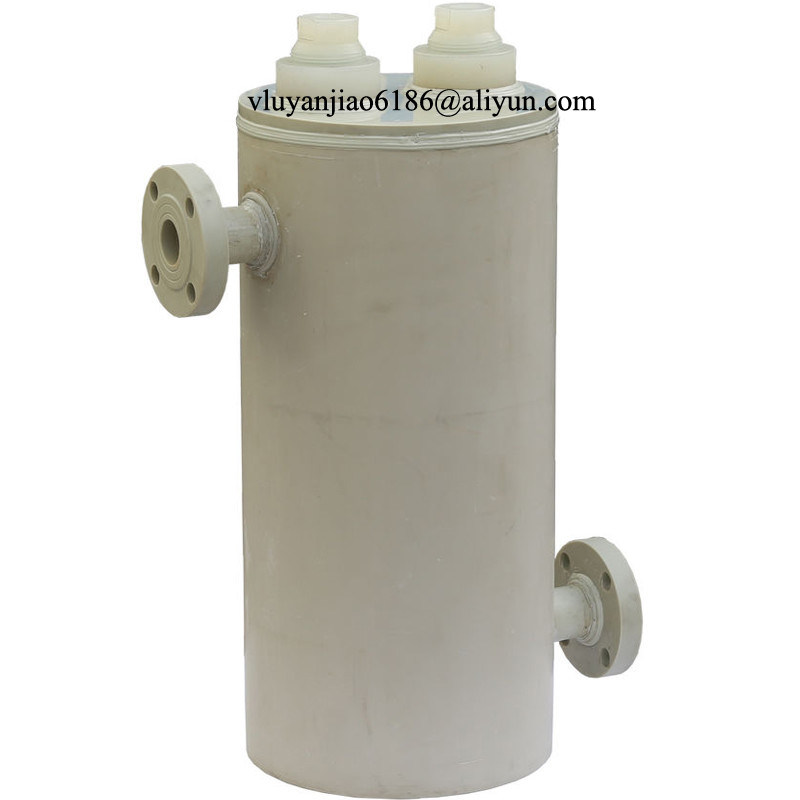

Semiconductor Industry Inline PTFE Heat Exchanger All Fluoropolymer Wetted Surfaces
Semiconductor Industry Inline PTFE Heat Exchanger All Fluoropolymer Wetted Surfaces
  • Semiconductor Industry Inline PTFE Heat Exchanger All Fluoropolymer Wetted Surfaces

Semiconductor Industry Inline PTFE Heat Exchanger All Fluoropolymer Wetted Surfaces

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001,CE
Model Number: PTFE Heat Exchanger 0５
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001,CE
Model Number:
PTFE Heat Exchanger 0５
Name:
Semiconductor Industry All Fluoropolymer Wetted Surfaces Inline PTFE Heat Exchanger
Frame Material:
PTFE,PP,PVC,PVDF
Tube Material:
PFA,PTFE,FEP
Connections:
1/2" FNPT Or Others
Pressure:
30 PSI
Size:
Can Designed As Requirements
Highlight:

High Light

Highlight:

Semiconductor PTFE Heat Exchanger

,

Inline PTFE Heat Exchanger

,

Semiconductor Inline Heat Exchanger

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Negotiable
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
T/T,
Supply Ability:
50 PC/Month
Product Description
Semiconductor Industry All Fluoropolymer Wetted Surfaces Inline PTFE Heat Exchanger
Inline chemical heat exchangers are ideal for one-pass cooling of chemicals dumping to waste stream. This product is also appropriate for heating applications. The system innovatively eliminates high costs associated with water aspiration. Utilizing PP or PVDF housing and fluoropolymer tubing, it is configured for your application with custom sizes available.
Service
In-line chemical heat exchanger with all fluoropolymer wetted surfaces (tubing side) for virtually any wet chemistry application.
Standard Sizes
  • 6.5 ft² (0.65m²) - 160ft² (20m²) of exchange area
  • Custom exchange area available, max to 550 ft² (51m²) exchange area
Standard Features
  • ½-inch (12mm) heavy wall PFA tubing, .030" (0.76mm) thick
  • All welded construction (shell)
  • 10-22 inch (255-560mm) diameter Polypropylene/PVDF shell
  • Internally baffled for enhanced heat exchanger performance
  • "U" factor (depending on flow rate): 25-50 BTU/(hr x ft² x °F) = 142-284 J/(s x m² x °C)
  • Shell-side drain connection
Fluid Connections
  • Fluid (tube): ½-inch (12mm) male flare PFA/PTFE
  • Shell: Flange connection according to customer request
  • Shell drain: ¼-inch (6mm) male flare PFA/PTFE
Maximum Pressure/Temperature
Component Pressure Temperature
Tube (PFA) 35 PSIG (241 kPa) 120°C (250°F)
Shell (PP) 30 PSIG (206 kPa) 82°C (180°F)
Optional shell (PVDF) 30 PSIG (206 kPa) 135°C (275°F)
Warranty
2 years
Options
  • Custom sizes based on application
  • PVDF shell
Custom exchange area and size are available
