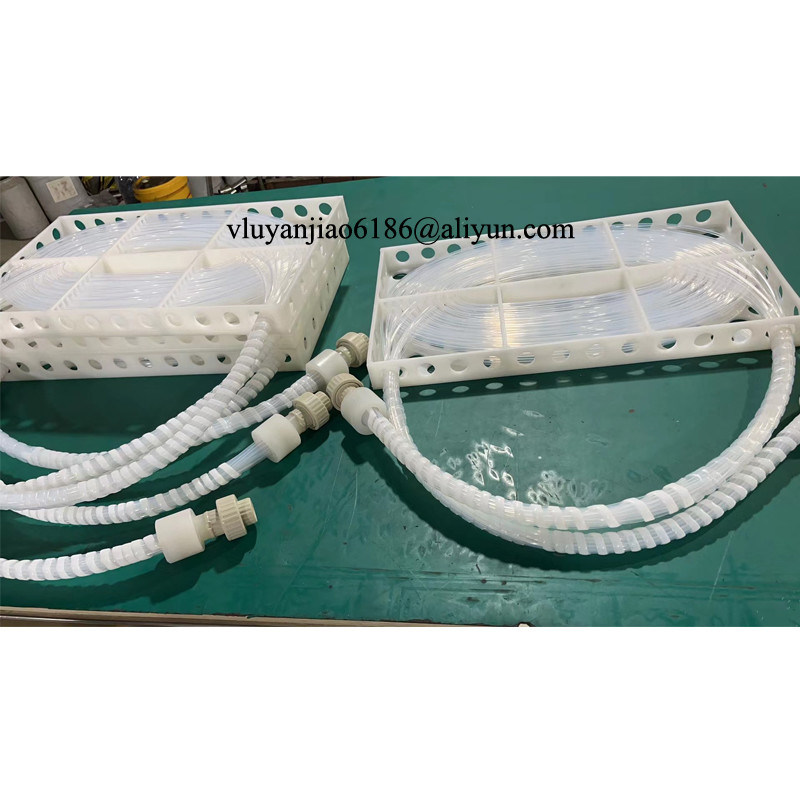

PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling
PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling
  • PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling
  • PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling

PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001,CE
Model Number: PTFE Heat Exchanger 10
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001,CE
Model Number:
PTFE Heat Exchanger 10
Name:
High Purity Heating And Cooling Immersion PTFE Heat Exchanger With PFA Tubing
Frame Material:
PTFE,PP,PVC,PVDF
Tube Material:
PFA,PTFE,FEP
Connections:
1/2" FNPT Or Others
Pressure:
30 PSI
Size:
Can Designed As Requirements
Highlight:

High Light

Highlight:

PFA PTFE Heat Exchanger

,

High Purity PTFE Heat Exchanger

,

PFA Tubing Heat Exchanger

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Negotiable
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
T/T,
Supply Ability:
50 PC/Month
Product Description
High Purity Heating and Cooling Immersion PTFE Heat Exchanger With PFA Tubing
PVDF/PFA heat exchangers provide versatile solutions for heating, cooling, and temperature control of fluids in ultra-pure manufacturing processes. These units are particularly effective for handling deionized water, solvents, and Piranha/SC1 solutions.
Available as standalone heat exchangers or integrated heating/cooling systems, these units offer power ratings from 2-5 kW and operate at voltages of 200-480 VAC (1-phase). Maximum operating temperatures reach 95°C (203°F) for the shell and 180°C (356°F) for the tubes.
Design and Operation
Universal heat exchangers address the need for uniform temperature control in chemical baths containing various substances. The basic configuration consists of:
  • Two adaptors connected by multiple tube lengths
  • Round adaptor blocks with precisely drilled holes to secure tube ends
  • A pumping system that circulates fluid through the tubes
The submerged tubes (often several meters long) facilitate heat transfer between the bath chemicals and the internal fluid. Performance factors include:
  • Tube dimensions (length, diameter, quantity) determining fluid capacity
  • Tube wall thickness affecting heat transfer efficiency
Our PTFE (Teflon) heat exchangers feature both adaptors and tubes constructed from pure virgin PTFE for maximum chemical resistance and purity.
Key Industries
  • Semiconductor Fabrication
  • Solar Cell Manufacturing
  • Flat-Panel Display, LEDs & Electronics
  • Chemicals Manufacturing
  • Industrial Manufacturing
Applications
Ultra-High-Purity Heating
Our clean-room assembled heating solutions meet the stringent requirements of ultra-high-purity processes with reliable performance tailored to specific applications.
Products For Ultra-High-Purity Heating
PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling 0
Inline Heater
PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling 1
PFA Inline Heater
PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling 2
Inline Chemical Heater
Flammable Solvent Heating
Our specialized heating solutions safely handle IPA and low flash-point solvents while meeting rigorous cleanliness standards for advanced semiconductor technologies.
Products For Flammable Solvent Heating
PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling 3
PFA Inline Chemical Heater
PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling 4
PTFE Inline Chemical Heater
PFA Tubing Immersion PTFE Heat Exchanger With High Purity Heating and Cooling 5
Inline Chemical Heater
