PTFE/PFA heat exchangers are engineered for heating and cooling highly corrosive and ultra-pure fluids in demanding industrial applications.
Product Overview
Our PVDF/PFA heat exchangers provide versatile solutions for heating, cooling, and precise temperature control of fluids in ultra-pure manufacturing processes. These units are particularly effective for handling deionized water, solvents, and aggressive chemical solutions like Piranha/SC1.
All models feature the efficient, patented USK heating coil design and are available as standalone units or integrated systems. Available in power ratings from 2-5 kW with voltage options from 200-480 VAC (1-phase). Operational temperatures reach 95°C (203°F) for the shell and 180°C (356°F) for the tubes.
Compact Process Purity Design

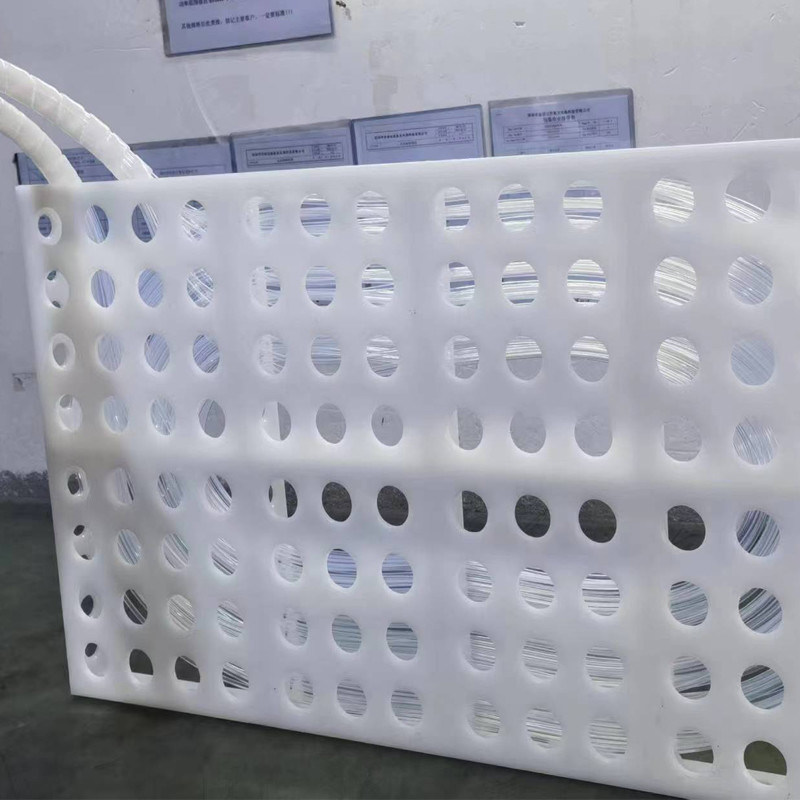

Constructed with high-purity materials including polypropylene, PVDF, PTFE, or PP for the frame, with all-PFA tube bundles to ensure maximum chemical compatibility. The compact design maximizes heat transfer surface area within minimal footprint requirements.
Key Features & Benefits
Ultrapure PFA surfaces for superior chemical resistance
Multiple material configurations: Polypro/PFA, PVDF/PFA, or all-PFA construction
Space-efficient design maximizes heat transfer surface area
Simplified installation with plug-and-play connectivity
Dual-function capability for both heating and cooling applications
Patented USK heating coil technology
High temperature tolerance: 95°C (203°F) frame / 180°C (356°F) tubes
Customizable solutions for specialized applications
Material Options: Polypropylene, PVDF, PTFE, or PP frames with PFA tubing Power Range: 2-5 kW Voltage: 200-480 VAC (1-phase) Temperature Range: 95°C (203°F) frame / 180°C (356°F) tubes
