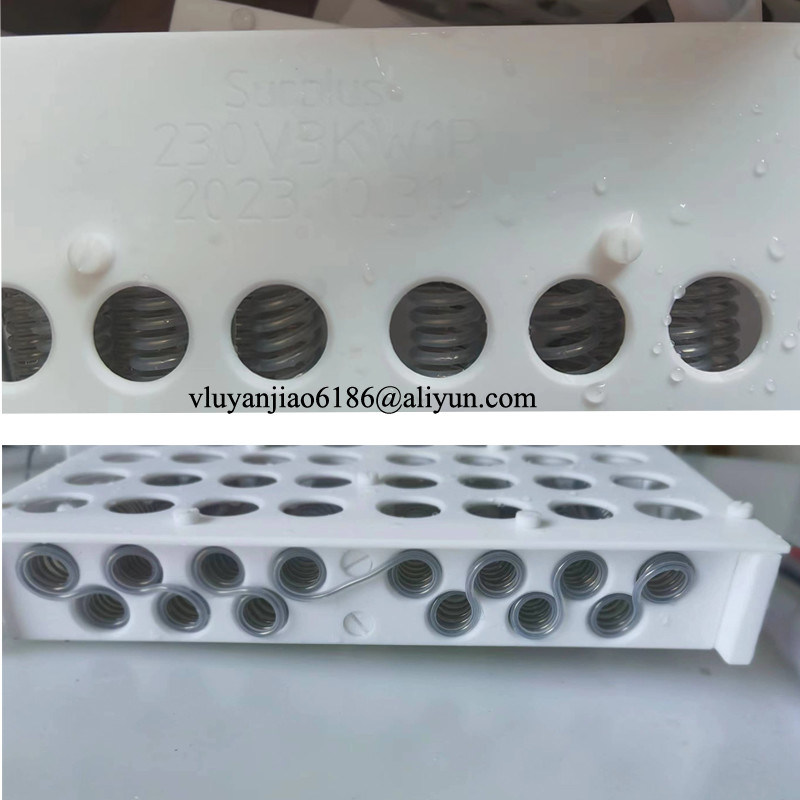

This 208V 1Phase 3KW PTFE submersible heater is designed for semiconductor applications, featuring a compact 350x250x40mm dimension and PTFE+PFA heating wire construction. The heater is placed at the bottom of chemical tanks to efficiently heat solutions.
Designed for ultra-high-purity (UHP) processes in semiconductor and wafer processing industries, these heaters meet stringent cleanroom requirements.
These immersion heaters provide clean, even heat distribution for semiconductor, pharmaceutical, and biomedical applications. Their compact design maximizes process area while minimizing chemical consumption. All wetted surfaces feature PFA materials, compatible with PVDF, PFA, or quartz tanks.
Feature | Specification |
---|---|
Heater Element | Heating Coil |
Wetted Surfaces | PFA/PTFE |
Wattages | 1.0 - 20 kW |
Voltages | 120 - 480 VAC (1 or 3 phase) |
Sizes (LxW) | 7x5 to 19x14 inch |
Height | 1-5/8 inch |
Temperature | 200°C (392°F) |
Hi-Limit Sensor | Type-J thermocouple |
Ground Wire | Encapsulated |
Lead Wire | 15-ft |
Features include a patented PreciseHeater coil with >99% efficiency and 10+ year MTBF, microprocessor-based temperature control, and optional safety components including platinum/embedded ground wires and RTD over-temperature sensors.
We offer various PTFE-lined solutions including welded tanks, small vessels, and mixers with materials including PTFE, PFA, FEP, ECTFE, and PVDF with etching or glass backing.
Essential for semiconductor and flat panel display manufacturing, our deionized water heating systems maintain the highest purity standards for critical processes.
Our fluoropolymer heaters are engineered to withstand aggressive chemicals while maintaining safety and performance standards.
Product Series | Image | Description |
---|---|---|
3HX Series | ![]() |
High-purity chemical heater |
HXT SERIES - SCREWPLUG | ![]() |
Screwplug design heater |
9HX SERIES | ![]() |
Industrial-grade heater |
6HX SERIES | ![]() |
Medium-capacity heater |
3HXOL SERIES | ![]() |
Open-loop heater |
HXSL SERIES | ![]() |
Specialized line heater |
