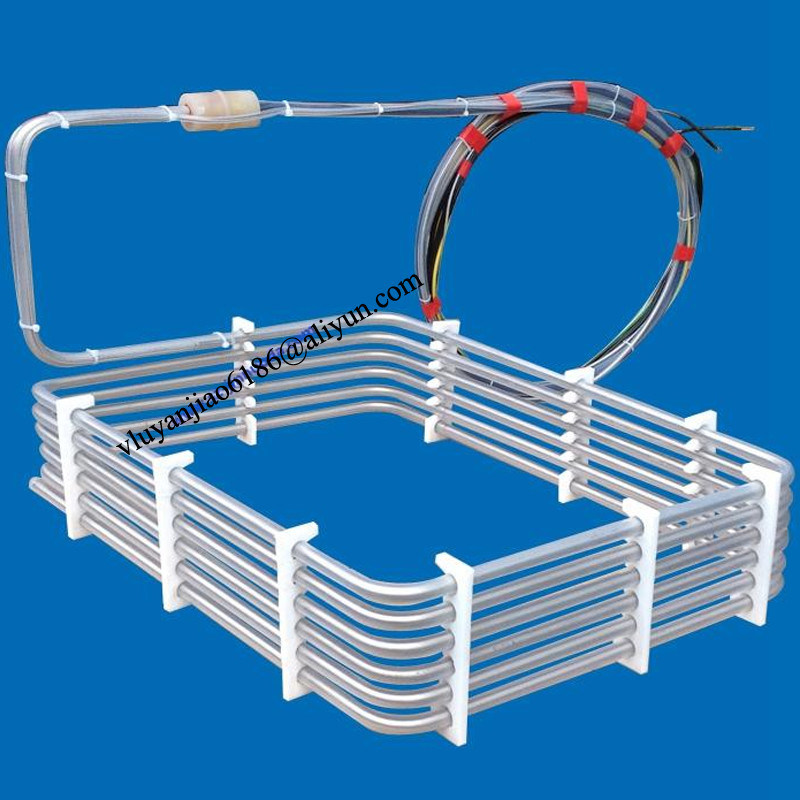

PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank
PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank
  • PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank

PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: Heaters For Semiconductors 05
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
Heaters For Semiconductors 05
Name:
Bottom Heating Submersible PTFE Semiconductor Heater For Wet Process Tank
Type Of Temperature Control:
PT100 Or J Type
Application:
Semiconductor, Solar, MEMs, And Other Technological Industries
Frame Material:
PTFE
Inside Material:
PFA
Cable Length:
2 Meters/3meters/others
Highlight:

High Light

Highlight:

PTFE Industrial Submersible Heater

,

Wet Process Tank Submersible Heater

,

Bottom Heating Industrial Submersible Heater

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
TT, Paypal, Western Union
Supply Ability:
50 PC/Month
Product Description
Bottom Heating Submersible PTFE Semiconductor Heater For Wet Process Tank
Key Features
  • Voltage: 110V-480V
  • Power: 3KW-36KW/Set
  • Dimension: Customizable to tank size
  • Material: PTFE+PFA heating wire
  • Usage: Designed for bottom placement in chemical tanks to heat solutions
Industries Served
Semiconductor industry solutions for ultra-high-purity (UHP) processes and cleanroom requirements.
Applications
  • Wet-Deposition
  • Flammable Solvent Heating
  • Chemical Heating
  • RO/DI Water Heating
  • Ultra-High-Purity Heating
Product Overview
These semiconductor heaters provide clean, even heat distribution for fluid baths in semiconductor, pharmaceutical, and biomedical industries. The compact, customizable design maximizes process area while minimizing chemical consumption. All wetted surfaces feature PFA materials, compatible with PVDF, PFA, or quartz tanks.
Compatibility
Designed for both aggressive chemistries and deionized water, available in grid, frame, and fence models with outputs from 1.0 to 30.0 kW. Features low watt density (≤ 4 watts/in²) for rapid heating response.
Safety Features
Patented PreciseHeater coil with >99% efficiency and 10+ year MTBF. Includes microprocessor-based temperature control with optional safety features: platinum/embedded ground wires, Type-J thermocouple, and RTD over-temperature protection.
Key Specifications
Feature Specification
Wetted Surfaces PFA/PTFE
Wattages 1.0 - 20 kW
Voltages 120 - 480 VAC (1 or 3 phase)
Sizes (LxW) 7x5 to 19x14 inch
Height 1-5/8 inch
Temperature 200°C (392°F)
Hi-Limit Sensor Type-J thermocouple
Ground Wire Encapsulated
Lead Wire 15-ft
Related PTFE Tank Solutions
We offer custom PTFE-lined tanks, vessels, and mixers with materials including PTFE, PFA, FEP, ECTFE, and PVDF. Features include:
  • Acid/alkali storage capability
  • High temperature resistance
  • Custom sizing with PFA outlets/inlets
Product Images
PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 0 PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 1 PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 2 PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 3 PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 4 PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 5 PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 6 PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 7 PTFE Industrial Submersible Heater Bottom Heating For Wet Process Tank 8
