| Place of Origin: | China |
| Brand Name: | Surplus |
| Certification: | ISO9001,CE |
| Model Number: | PTFE Tank 21 |

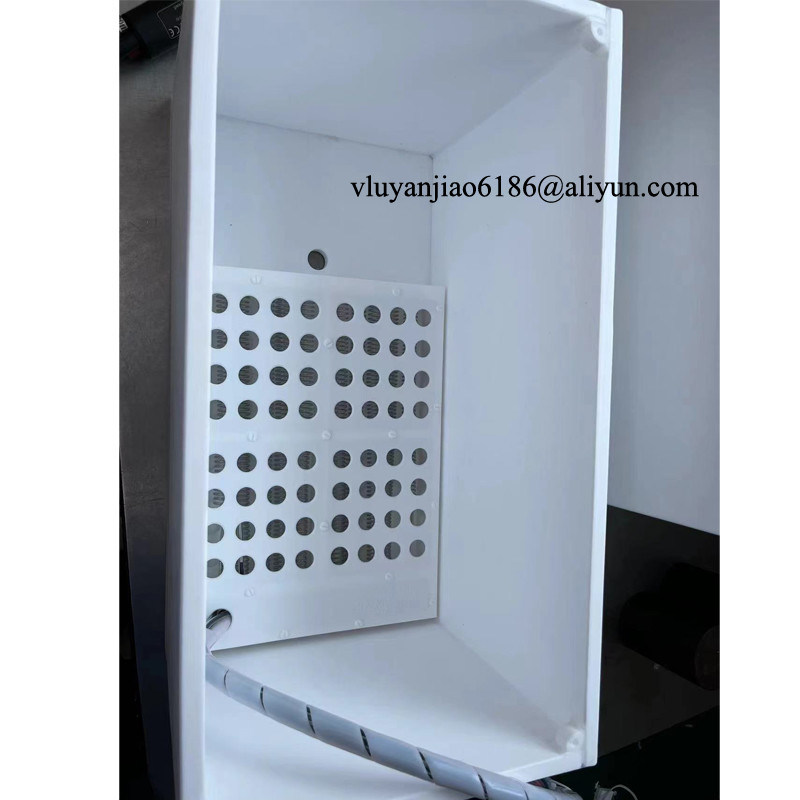

| Product Name | PTFE Tank |
|---|---|
| Category | Integrated PTFE tank; and Welding PTFE tank |
| Processing | Moulding, Welding, and CNC processing |
| Temperature | -180 ~ 260℃ |
| Material | 100% raw PTFE material |
| Size | Custom. Max size: 1500X2000X700 |
| Properties | Corrosion resistance, high and low temperature resistance, aging resistance, dielectric and insulating, self-lubrication, non-adhesive, non-flammable, non-toxic. |
| Application | Semiconductor cleaning, Chemical reaction, Corrosion liquid tank, etc. |
| Package | Carton, Wooden Pallet, support custom package |
| MOQ | 1 pcs |
Surplus designed process and rinse tanks are constructed from a single sheet of application specific plastic material that is CNC machined and then folded into the form of your tank using the "ORIGAMI" method. Welded corners can create particle/contamination traps and can leak due to workmanship, thermal cycling, and/or prolonged chemical exposure. However, the "ORIGAMI" method minimizes welding and provides smooth, seamless, rounded interior corners.
Custom-mode product to be manufactured by our experienced welders to the satisfaction of the customer. The maximum size we delivered is 2.0 m × 2.5 m × 2.0 m.
Products designed to safely heat IPA and low flash-point solvents, meeting the most stringent cleanliness requirements to support next-generation semiconductor node technologies.
Designed with Ultra-High-Purity processes in mind, Surplus delivers clean-room assembled, reliable heating and power solutions to fit specific needs.
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
| MOTS TRIPLE - VERTICAL | MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts. | |
|---|---|---|
| 9HS SERIES - TUBULAR | 9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts. | |
| V SERIES - VARIPOWER | Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts. | |
| MOTS SINGLE | MOTS Single Heater - Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts. | |
| MOTS SINGLE - DAS, PHOSPHATE | MOTS Single DAS Phosphate Heater - Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts. | |
| MOTS TRIPLE - L SHAPED, DERATED | Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts. | |
