Electric PFA Frame Immersion Heater With PT100 Sensor for Chemical Heating
Electric PFA Frame Immersion Heater With PT100 Sensor for Chemical Heating
  • Electric PFA Frame Immersion Heater With PT100 Sensor for Chemical Heating

Electric PFA Frame Immersion Heater With PT100 Sensor for Chemical Heating

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: PFA Frame Heater 017
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
PFA Frame Heater 017
Name:
Superior Temperature Control And Maximum Power Output Immersion PFA Frame Heater
Supply Voltage (V/Phase)::
230V,380V,480V Or Others
Type Of Temperature Control:
PT100 Or J Type
Application:
Semiconductor, Solar, MEMs, And Other Technological Industries
Frame Material:
PTFE
Inside Material:
PFA
Cable Length:
2 Meters/3meters/others
Highlight:

High Light

Highlight:

Electric PFA Frame Immersion Heater

,

Electric PFA Heater With PT100 Sensor

,

230V PFA Frame Immersion Heater

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
TT, Paypal, Western Union
Supply Ability:
50 PC/Month
Product Description

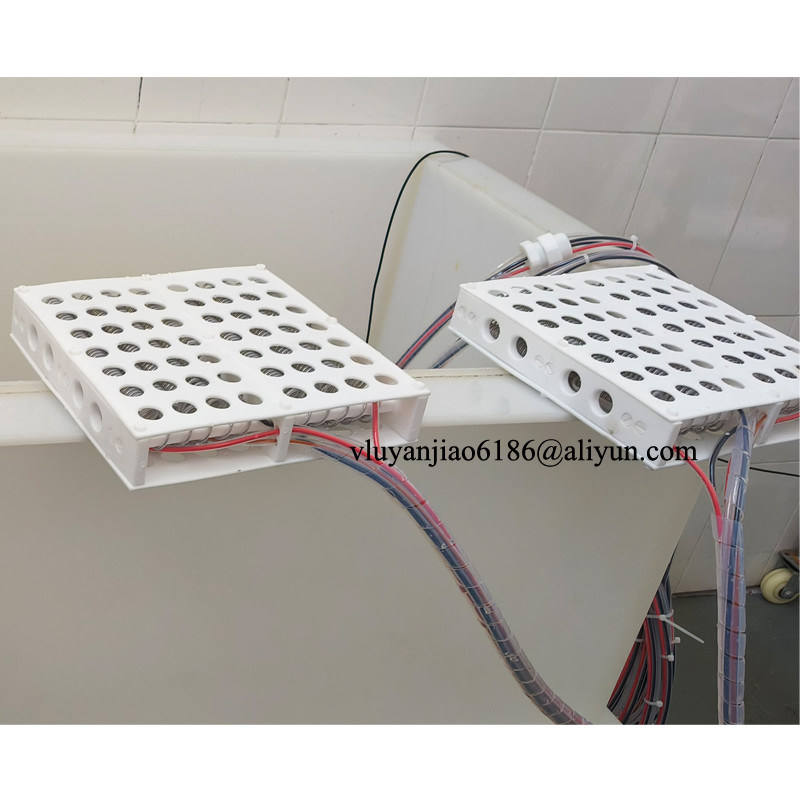

Electric PFA Frame Immersion Heater With PT100 Sensor for Chemical Heating
Superior Temperature Control and Maximum Power Output Immersion PFA Frame Heater
PFA Frame heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.
Features & Benefits
  • Ultrapure PTFE/PFA wetted surfaces
  • Reliable heating of harsh chemicals
  • Maximum power in compact footprint
  • Maximum 200°C heating capability
  • Fast temperature response and efficiency
  • Each configuration capable of various voltage-to-wattage combinations
  • Integrate easily into most PVDF, PFA, and quartz wet process tanks
  • Sizes for many tank dimensions
  • Compact height of 1-5/8 inch
  • Safety features include hi-limit sensor and encapsulated ground wire
  • No N2 purge required
Optional Perforated Grids
  • Top grids separate heaters from wafer carriers and components to increase the available tank space
  • Bottom grids separate heaters from the tank floor
  • Available for all frame sizes
  • Adds 1/8 inch to height
Specifications
Heater Element Heating Coil
Wetted Surfaces PFA/PTFE
Wattages 1.0 - 20 kW
Voltages 120 - 480 VAC
1 or 3 phase
Sizes (LxW) 7x5 to 19x14 inch
Height 1-5/8 inch
Temperature 200°C (392°F)
Hi-Limit Sensor Type-J thermocouple
Ground Wire Encapsulated
Lead Wire 15-ft
Industries
Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing
Applications
Chemical Heating
Fluoropolymer (PTFE) heater and heating components are engineered with protection from corrosive chemicals while maintaining the highest quality and safety standards.
HXT SERIES - SCREWPLUG
Low watt density, spiral screwplug heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.
Electric PFA Frame Immersion Heater With PT100 Sensor for Chemical Heating 0
HXOL SERIES
Low watt density, flexible riser, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.
Electric PFA Frame Immersion Heater With PT100 Sensor for Chemical Heating 1

Tags:

PFA Frame Immersion Heater,

PFA Immersion Heating Device,

PFA Frame Tank Heaters
