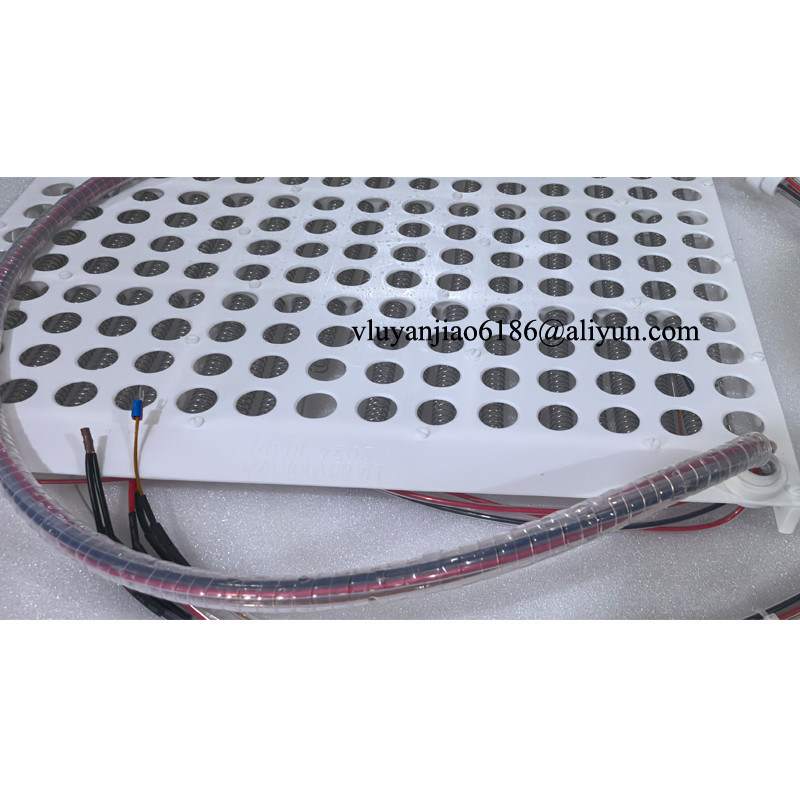

400V Industrial PTFE Frame Heater With Temperature Control In Ultrapure Tanks

Name: 400V Industrial PTFE Frame Heater With Temperature Control In Ultrapure Tanks
Brand: Yingxi Trading Company
SKU: PFA Frame Heater 06
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Frame Heater 06

Detail Information

Place of Origin:

China

Brand Name:

Surplus

Certification:

ISO9001

Model Number:

PFA Frame Heater 06

Name:

PFA Frame Heater For High-Efficiency Heating With Superior Temperature Control In Ultrapure Tanks

Supply Voltage (V/Phase)::

400V Or Others

Type Of Temperature Control:

PT100 Or J Type

Application:

Semiconductor, Solar, MEMs, And Other Technological Industries

Frame Material:

PTFE

Inside Material:

PFA

Cable Length:

2 Meters/3meters/others

Highlight:

High Light

Highlight:

Industrial PTFE Frame Heater

PTFE Frame Heater Temperature Control

400V Industrial PTFE Heater

Trading Information

Minimum Order Quantity:

1 PCS

Price:

Packaging Details:

Wooden Case or Carton Box

Delivery Time:

10-15 working days

Payment Terms:

TT, Paypal, Western Union

Supply Ability:

50 PC/Month

Product Description

Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks

PFA immersion tank heaters provide high-efficiency heating with superior temperature control for harsh chemicals or DI water in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for high-purity applications requiring excellent chemical compatibility. These heaters deliver maximum power output in a compact footprint and are available in various sizes to fit new and existing systems in semiconductor, solar, MEMs, and other technological industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Various voltage-to-wattage combinations available
Easy integration into PVDF, PFA, and quartz wet process tanks
Multiple sizes for different tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Optional Perforated Grids

Top grids separate heaters from wafer carriers and components to increase available tank space
Bottom grids separate heaters from the tank floor
Available for all frame sizes
Adds 1/8 inch to height

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 - 20 kW
Voltages	120 - 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Applications

General Metal Finishing

General Metal Finishing (GMF) heaters provide chemical treatment and finishing of metal substrates, adding decorative or functional layers to base metal used in industrial and consumer products.

Products For General Metal Finishing

MOTS SINGLE Heater

Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

MOTS SINGLE - DAS, PHOSPHATE

Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

MOTS TRIPLE - L SHAPED, DERATED

Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

MOTS SINGLE - BOTTOM, DERATED

Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. 500-6000 watts, 120-480 volts.

MOTS TRIPLE - L SHAPED

L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

6HS SERIES - TUBULAR

Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

9HX SERIES

Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.

6HX SERIES

Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 3000-18000 watts, 208-480 volts.

HXF SERIES

Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.

HX SERIES

Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Single phase. 500-9000 watts, 120-600 volts.

QM SERIES HEATER ELEMENT

Metal Element (QM part 1). Single phase. Heats up to 212°F (100°C). 500-10000 watts, 120-600 volts.
