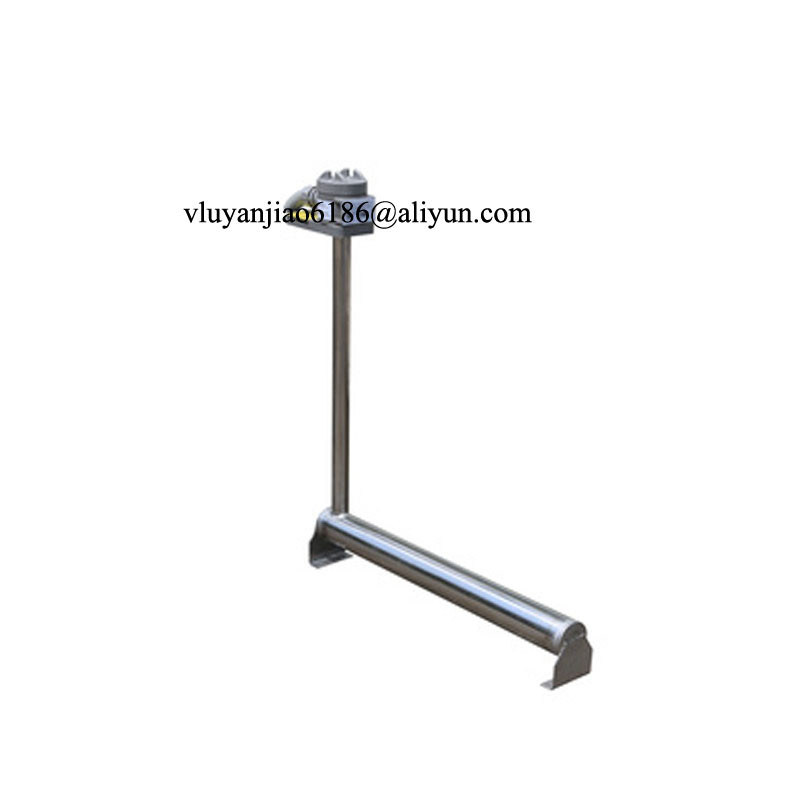

L Shaped Max Single Bottom PTC Heaters SUS316 For Semiconductors Industry

Heaters' elements are PTC positive temperature coefficient semiconductors - making the heaters self-limiting. That is, they reach a set maximum sheath temperature (which is below the ignition point of most combustible materials), meaning they are especially safe for process applications.

• PTC heater element lasts longer than conventional heaters.
• Will not burn out if run in air.
• Will not burn out due to scale or sludge buildup.

• Heater self limits its maximum operating temperature to 250 Celsius degree. This is lower than the ignition point of most plastics.
• Will not melt tanks when a 1/2" (12mm) minimum distance is maintained.
• Overtemperature protection devices are not required.
• Safety is built-in, not added on.
• Metal-grounded construction (earth ground).
• Non-floating construction.

1,000 watts (1kW) to 6,000 watts (6kW).

Three voltage ranges available: 110-120 volt, 200-240 volt, and 380-480 volt. Heater is available in single or three phase power.

CORROSION RESISTANT HEADS: Vaporresistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

• Watt densities of 4 watts/cm2 ensure long service life.
• Auto-stabilizing solid state element prevents hot spots and ensures uniform heating.
• Heater derates itself in highly viscous and high temperature solutions. Consult factory for sizing assistance.

For use in most aqueous alkaline, electroplating and rinse solutions. Check our Solution Guide or with your chemical supplier for recommended sheath material. Available in:

• 304 stainless steel
• 316 stainless steel
• Titanium

Consult factory for the following:

• Longer wire and conduit lengths.
• Extended cold zones.
• Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

	HXSL SERIES Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
	HXRL SERIES Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
	HXO SERIES Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
