L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom
L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom
  • L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom

L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: PTC heaters 04
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
PTC heaters 04
Supply Voltage (V/Phase)::
110-120 Volt, 200-240 Volt, And 380-480 Volt.
Power(KW):
1,000 Watts (1kW) To 6,000 Watts (6kW).
Dimension:
According Customer's Requirement
Type Of Temperature Control:
PT100 Or J Type
Application:
Semiconductor, Solar, MEMs, And Other Technological Industries
Material:
SUS316 Or Titanium
Cable Length:
2 Meters/3meters/others
Highlight:

High Light

Highlight:

Triple Tubes PTC Heaters

,

PTC Heaters Custom

,

PTC Heater Chemically Resistant

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
TT, Paypal, Western Union
Supply Ability:
50 PC/Month
Product Description
L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom

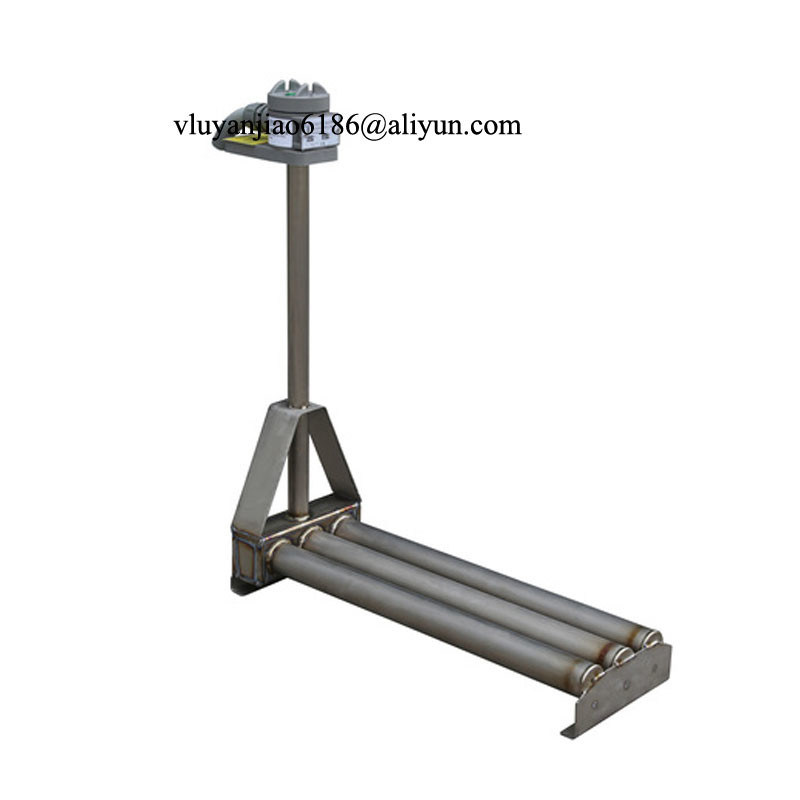

L-shaped Max Triple tubes Bottom PTC Heater

Heaters' elements are PTC positive temperature coefficient semiconductors - making the heaters self-limiting. They reach a set maximum sheath temperature (which is below the ignition point of most combustible materials), meaning they are especially safe for process applications.

LONG ELEMENT LIFE
  • PTC heater element lasts longer than conventional heaters
  • Will not burn out if run in air
  • Will not burn out due to scale or sludge buildup
SAFE DESIGN
  • Heater self-limits its maximum operating temperature to 250°C (below ignition point of most plastics)
  • Will not melt tanks when a 1/2" (12mm) minimum distance is maintained
  • Overtemperature protection devices not required
  • Metal-grounded construction (earth ground)
  • Non-floating construction
SIZES: 1,000 watts (1kW) to 6,000 watts (6kW)
VOLTAGES: Three voltage ranges available: 110-120 volt, 200-240 volt, and 380-480 volt. Heater is available in single or three phase power.
CORROSION RESISTANT HEADS: Vapor-resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.
OUTSTANDING PERFORMANCE
  • Watt densities of 4 watts/cm² ensure long service life
  • Auto-stabilizing solid state element prevents hot spots and ensures uniform heating
  • Heater derates itself in highly viscous and high temperature solutions
CHEMICALLY RESISTANT: For use in most aqueous alkaline, electroplating and rinse solutions. Available sheath materials:
  • 304 stainless steel
  • 316 stainless steel
  • Titanium
Consult factory for:
  • Longer wire and conduit lengths
  • Extended cold zones
  • Temperature and level controls sized to match the heater
Other Applications
Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, our fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 0 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 1 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 2
3HX Series HXT SERIES - SCREWPLUG 9HX SERIES
L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 3 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 4 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 5
6HX SERIES 3HXOL SERIES HXSL SERIES
PTFE Tanks

We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.

Material used: PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.

  • Can store acid or alkali
  • High temperature resistance
  • Can custom sizes or even install PFA outlet and PFA inlet
L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 6 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 7 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 8 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 9 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 10 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 11 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 12 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 13 L Shaped Max Triple Tubes Bottom PTC Heaters Chemically Resistant Custom 14
