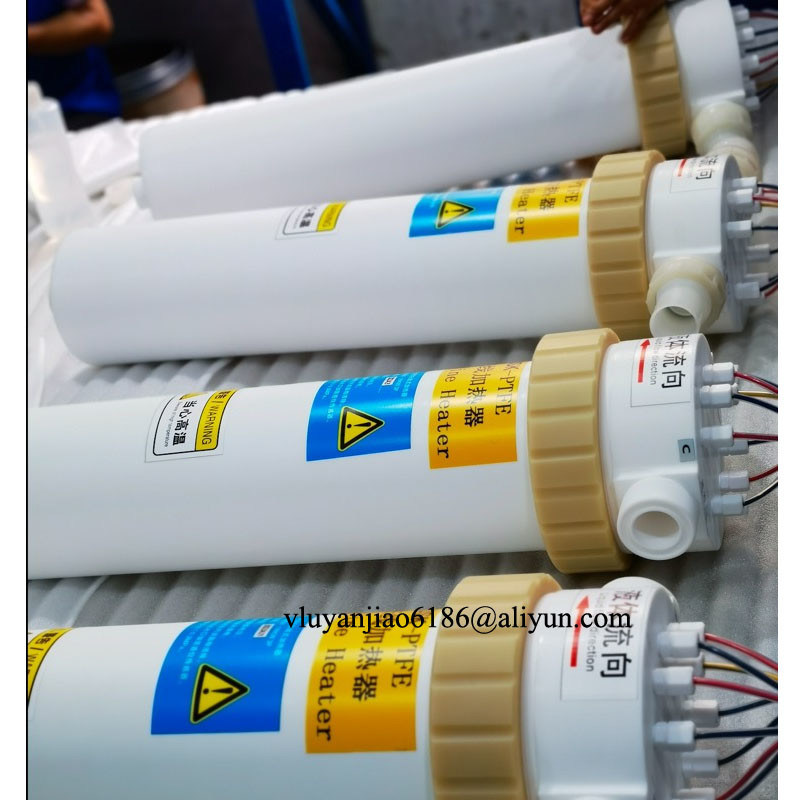

Custom High Purity Flow PFA Inline Heater For Photovoltaic Wafer Cleaning

Name: Custom High Purity Flow PFA Inline Heater For Photovoltaic Wafer Cleaning
Brand: Yingxi Trading Company
SKU: Heaters For Photovoltaics 02
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	Heaters For Photovoltaics 02

Detail Information

Place of Origin:

China

Brand Name:

Surplus

Certification:

ISO9001

Model Number:

Heaters For Photovoltaics 02

Supply Voltage (V/Phase)::

Customizable

Power(KW):

3kw

Dimension:

350mm*250mm*40mm

Type Of Temperature Control:

PT100 Or J Type

Application:

Heaters For Photovoltaics

Frame Material:

PTFE

Inside Material:

PFA

Cable Length:

2 Meters/3meters/others

Highlight:

High Light

Highlight:

High Purity Flow Inline Heater

Photovoltaic Wafer Cleaning Inline Heater

Custom PFA Inline Heater

Trading Information

Minimum Order Quantity:

1 PCS

Price:

Packaging Details:

Wooden Case or Carton Box

Delivery Time:

10-15 working days

Payment Terms:

TT, Paypal, Western Union

Supply Ability:

50 PC/Month

Product Description

Custom High Purity Flow PFA Inline Heater For Photovoltaic Wafer Cleaning

High Purity Flow PFA Inline Chemical Photovoltaic Heater

Our inline chemical heaters feature unique thin film PFA electric resistive technology, offering superior performance for photovoltaic wafer cleaning applications.

Photovoltaic (PV) or Solar Cells

High efficiency, low-cost, long-life PV solar cells are typically made by depositing photovoltaic material layers on a supporting substrate. Multijunction cells with layered semiconductors achieve increased efficiency.

Key Features

Thin film on PFA electric resistive technology
High-purity materials construction
Quick ramp-up time
Crevice-free design
Customizable configurations
Two model options: high temperature and low temperature versions
Plug-and-play design for various applications

Technical Specifications

Max Flow: 28 LPM / 7 GPM

Max Temperature: 100°C / 212°F (ICA) or 200°C / 392°F (ICB)

Max Pressure: 80 PSI / 0.55 MPa

Materials: PFA element with housing options (PTFE, PFA and PVDF)

Power: 3 kW, 4 kW, or 6 kW combinations single phase or three phase

Voltage Options: 208, 400

Model Comparison

Specification	PH1	PH7
Wetted Material	PVDF/PFA	PVDF/PFA
Housing Material	Pipe	Pipe
Max Temp	95°C	95°C
Pressure	60 psi at 95°C	60 psi at 95°C
Power	1-6 kW	1-6 kW
Accuracy	± 0.1°C	± 0.1°C
Voltages	200-600 VAC, 1 and 3-phase	200-600 VAC, 1 and 3-phase
Flow	0.5-32 gpm (1.9-122 L/min)	0.5-32 gpm (1.9-122 L/min)
Benefits	Variable height	Higher flow, kW
