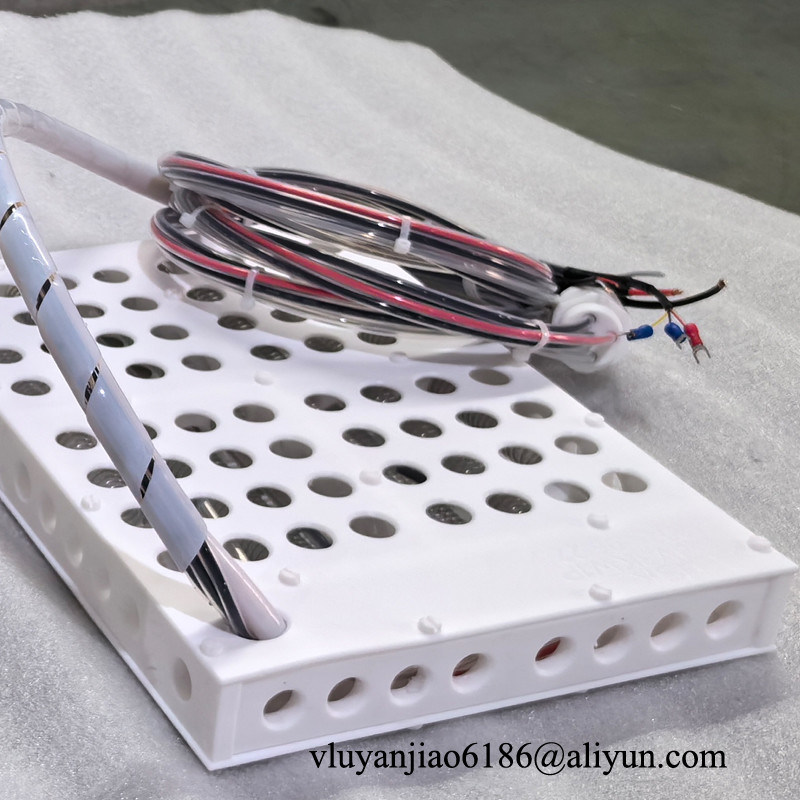

208V 1Phase 3KW PTFE Immersion Tank Heaters For Photovoltaics Industry
208V 1Phase 3KW PTFE Immersion Tank Heaters For Photovoltaics Industry
  • 208V 1Phase 3KW PTFE Immersion Tank Heaters For Photovoltaics Industry

208V 1Phase 3KW PTFE Immersion Tank Heaters For Photovoltaics Industry

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: Heaters For Photovoltaics 01
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
Heaters For Photovoltaics 01
Supply Voltage (V/Phase)::
208V 1Phase
Power(KW):
3kw
Dimension:
350mm*250mm*40mm
Type Of Temperature Control:
PT100 Or J Type
Application:
Heaters For Photovoltaics
Frame Material:
PTFE
Inside Material:
PFA
Cable Length:
2 Meters/3meters/others
Highlight:

High Light

Highlight:

Photovoltaics Industry Immersion Tank Heaters

,

3KW PTFE Immersion Tank Heaters

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
TT, Paypal, Western Union
Supply Ability:
50 PC/Month
Product Description
208V 1Phase 3KW PTFE Immersion Tank Heaters For Photovoltaics Industry
PV or Solar Cells
High efficiency, low-cost, long-life Photovoltaic (PV) solar cells are typically made of silicon by depositing PV material layers on a supporting material. Multijunction cells with layered semiconductors achieve higher efficiency.
Markets & Applications
Semiconductor | Photovoltaics
Fluid Heating | Photovoltaics
Product Overview
These immersion tank heaters provide clean, even heat for fluid baths in semiconductor, pharmaceutical, and biomedical applications. Their compact, customizable design maximizes process area while minimizing chemical consumption. All wetted surfaces feature PFA materials, compatible with PVDF, PFA, or quartz tanks.
208V 1Phase 3KW PTFE Immersion Heater Features
1. Material Properties
  • Constructed with high-temperature resistant PTFE/PFA fluoropolymers
  • Excellent corrosion resistance, insulation, and thermal stability
  • Withstands process temperatures up to 400°C (752°F)
2. Heating Principle
  • Disc-shaped immersion heating structure
  • Resistance wire heating for uniform, rapid heat transfer
  • Integrated precision temperature control system
3. Application Fields
  • Semiconductor: Wafer drying, etching, coating processes
  • Photovoltaics: Solar cell drying, annealing, packaging
  • Electronics: PCB boards, display screen manufacturing
4. Customization Options
  • Tailored dimensions, power ratings, and temperature ranges
  • Multiple material choices including ceramics and metal alloys
  • Compatible with vacuum and clean room environments
Technical Specifications
Component Specification
Heater Element Heating Coil
Wetted Surfaces PFA/PTFE
Wattages 1.0 - 20 kW
Voltages 120 - 480 VAC (1 or 3 phase)
Dimensions (LxW) 7x5 to 19x14 inches
Height 1-5/8 inch
Temperature Rating 200°C (392°F)
Hi-Limit Sensor Type-J thermocouple
Ground Wire Encapsulated
Lead Wire 15-ft standard

Tags:

Wafer Cleaning Inline Heater,

PFA Fluoropolymer Heater,

PV Immersion Heater
