Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

Name: Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry
Brand: Yingxi Trading Company
SKU: PTFE immersion Heater 19
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PTFE immersion Heater 19

Detail Information

Place of Origin:

China

Brand Name:

Surplus

Certification:

ISO9001

Model Number:

PTFE immersion Heater 19

Name:

Fluoropolymer(PTFE) Electric Immersion Heater For Semiconductor And Pharmaceutical Industry

Supply Voltage (V/Phase)::

110V-480V

Power(KW):

1KW-36KW

Type Of Temperature Control:

Overheat Protection

Application:

Acid Heating And Corrosive Chemical Heating

Frame Material:

PTFE

Inside Material:

SUS

Cable Length:

2 Meters/3meters/others

Highlight:

High Light

Highlight:

Pharmaceutical PTFE Immersion Heaters

Semiconductor PTFE Immersion Heaters

Electric Fluoropolymer Immersion Heater

Trading Information

Minimum Order Quantity:

1 PCS

Price:

Packaging Details:

Wooden Case or Carton Box

Delivery Time:

10-15 working days

Payment Terms:

TT, Paypal, Western Union

Supply Ability:

50 PC/Month

Product Description

Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor & Pharmaceutical Industry

Product Description

Fluoropolymer (PTFE) electric immersion heater designed for semiconductor and pharmaceutical applications with excellent chemical resistance to aggressive acids.

Key Features

PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C)
Low watt density design: 10 watts/square inch (1.5w/cm²)
Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit
Grounded internal metal element and built-in thermal protector
Replaceable P1 protector standard for solutions up to 180°F (82°C)
Certifications: cULus, CE, and CSA

Specifications

Power Range	3000 - 18000 watts
Voltage	120 to 600 volts (600 volts on 12,000 watts or lower only)

Available Options (Consult Factory)

Resettable thermal protectors
Polypropylene guards (sold separately)
Custom configurations and lengths
Custom wire and conduit lengths

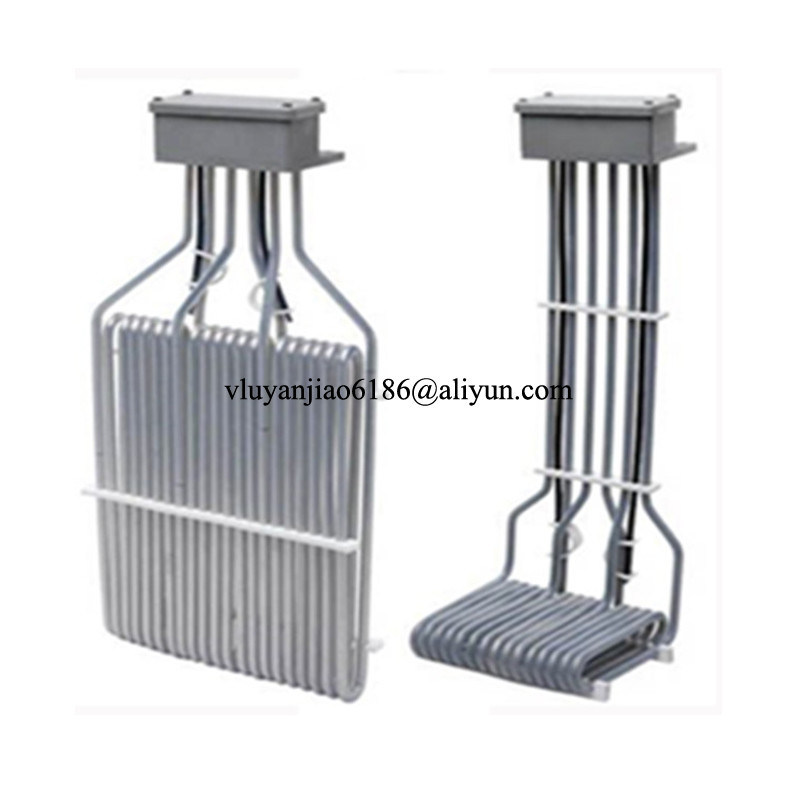

Flat Assembly Type - PTFE Immersion Heater

Universal 'all plastic' model ideal for important powers (from 6kW up to 48 kW) and large tanks. Rigid structure suitable for various installations including side of tank, bottom of tank with feet, or on slidings.

Other Applications

Ultra-High-Purity Heating

Designed with Ultra-High-Purity processes in mind, delivering clean-room assembled, reliable heating and power solutions to fit specific needs.

Inline Heater

PFA Inline Heater

Inline Chemical Heater

Acid Heating And Corrosive Chemical Heating

Built to withstand acids and corrosive chemicals while maintaining high quality and safety standards.

3HX Series

HXT SERIES - SCREWPLUG

9HX SERIES

6HX SERIES

3HXOL SERIES

HXSL SERIES

PTFE Tanks

We provide Teflon lined welded tanks, small Teflon lined vessels, mixer PTFE lined vessels and more. Materials used include PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing. These tanks can store acid or alkali, feature high temperature resistance, and can be customized with PFA outlets/inlets.
