Heater Twelve Element Vertical Shape PTFE Immersion 220V 3P 10KW

PTFE Immersion Heaters
December 24, 2025
Category Connection: PTFE Immersion Heaters
Chat Now Contact Us
Tags:
#Electric Immersion Heater #Immersion Tank Heater #Acid Immersion Heater
Brief: Thinking about an upgrade for your chemical heating process? This short demo helps you evaluate the fit. Watch as we showcase the 220V 3P 10KW Twelve Element PTFE Immersion Heater in action, demonstrating its vertical shape design and robust construction for handling aggressive acids and corrosive chemicals.
Related Product Features:
  • Features twelve PTFE-sleeved 304 stainless steel elements, inert to most solutions up to 212°F (100°C).
  • Designed with a low watt density of 10 watts per square inch (1.5w/cm²) for efficient and safe operation.
  • Includes a vapor-resistant, flame-retardant polypropylene terminal enclosure with a 3 ft flexible PVC liquid-tight conduit.
  • Equipped with a grounded internal metal element and a built-in thermal protector for enhanced safety.
  • Comes standard with a replaceable P1 thermal protector suitable for solutions up to 180°F (82°C).
  • Certified for safety and performance with cULus, CE, and CSA certifications.
  • Available in a power range from 3000 to 18000 watts and voltage options from 120 to 600 volts.
  • Offers optional resettable thermal protectors, polypropylene guards, and custom configurations upon request.
FAQs:
  • What types of chemical solutions is this PTFE immersion heater suitable for?
    This heater is designed with PTFE-sleeved elements that are inert to most aggressive acids and corrosive chemicals, making it ideal for applications involving acid heating and other harsh chemical processes, with reliable performance up to 212°F (100°C).
  • What safety features are included with this immersion heater?
    The heater includes a grounded internal metal element, a built-in thermal protector, and a vapor-resistant, flame-retardant polypropylene terminal enclosure. It also comes standard with a replaceable P1 thermal protector and holds cULus, CE, and CSA certifications.
  • Are custom configurations available for this heater?
    Yes, custom configurations and lengths are available as options. You can also request resettable thermal protectors, polypropylene guards, and custom wire and conduit lengths by consulting the factory.
  • What is the operating power and voltage range for this model?
    This specific model operates at 220V 3P 10KW, with the product line offering a power range from 3000 to 18000 watts and voltage options from 120 to 600 volts (600 volts applicable for 12,000 watts or lower).
Related Videos

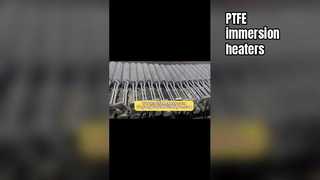

Vertical Shaped Spiral Over The Side Fluoropolymer (PTFE) Immersion Heaters 00:31
