Ultrapure PTFE PFA Frame Immersion Tank Heaters 480V for Wet Process Tanks

Name: Ultrapure PTFE PFA Frame Immersion Tank Heaters 480V for Wet Process Tanks
Brand: Yingxi Trading Company
SKU: PFA Frame Heater 011
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Frame Heater 011

Detail Information

Place of Origin:

China

Brand Name:

Surplus

Certification:

ISO9001

Model Number:

PFA Frame Heater 011

Name:

Ultrapure PTFE PFA Frame Heater For Most PVDF PFA And Quartz Wet Process Tanks

Supply Voltage (V/Phase)::

480V Or Others

Type Of Temperature Control:

PT100 Or J Type

Application:

Semiconductor, Solar, MEMs, And Other Technological Industries

Frame Material:

PTFE

Inside Material:

PFA

Cable Length:

2 Meters/3meters/others

Highlight:

High Light

Highlight:

PFA Frame Immersion Tank Heaters

480V PFA Frame Tank Heaters

Trading Information

Minimum Order Quantity:

1 PCS

Price:

Packaging Details:

Wooden Case or Carton Box

Delivery Time:

10-15 working days

Payment Terms:

TT, Paypal, Western Union

Supply Ability:

50 PC/Month

Product Description

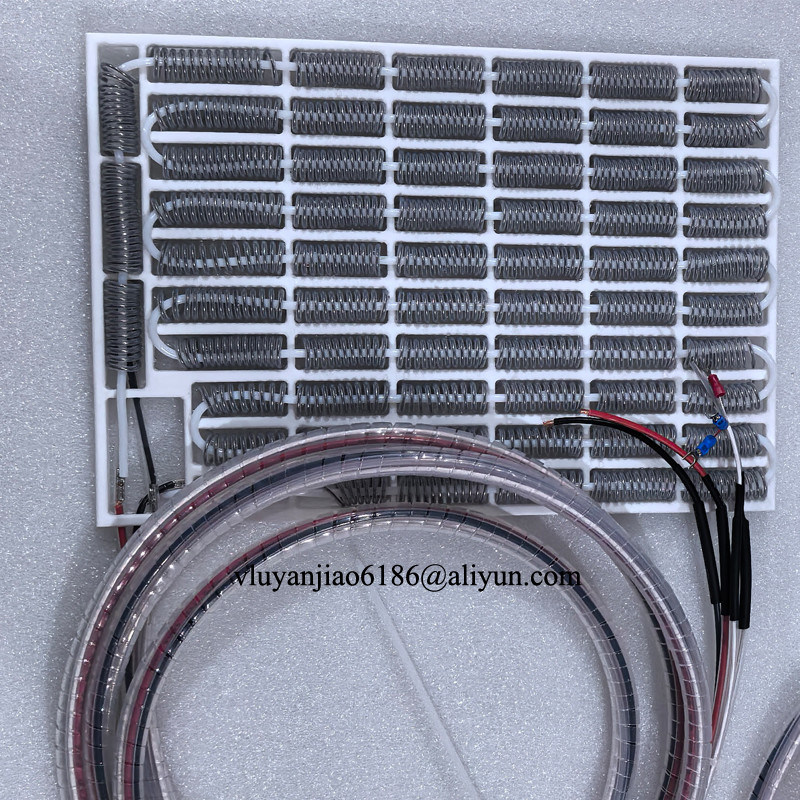

Ultrapure PTFE PFA Frame Immersion Tank Heaters 480V for Wet Process Tanks

Ultrapure PTFE PFA Frame Heater For Most PVDF PFA And Quartz Wet Process Tanks

PFA frame heaters provide optimal heating solutions for harsh chemicals or DI water in ultrapure tanks, including PVDF, PFA, and quartz tanks. Featuring PFA/PTFE wetted surfaces, these heaters are ideal for high-purity applications requiring superior chemical compatibility. They deliver high-efficiency heating with precise temperature control and maximum power output in a compact design. Available in various sizes to fit new and existing systems in semiconductor, solar, MEMs, and related industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Various voltage-to-wattage combinations available
Easy integration with most PVDF, PFA, and quartz wet process tanks
Multiple sizes for different tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 - 20 kW
Voltages	120 - 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Other Applications

Point Of Use Heating

Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.

Products For Point Of Use Heating

Applications

Semiconductor Wafer Cleaning
Etching
Inline Chemical Heating
Point of Use Heating (POU)

High-Purity PFA Inline Chemical Heater

PTFE Inline Heater

Inline Chemical Heater
