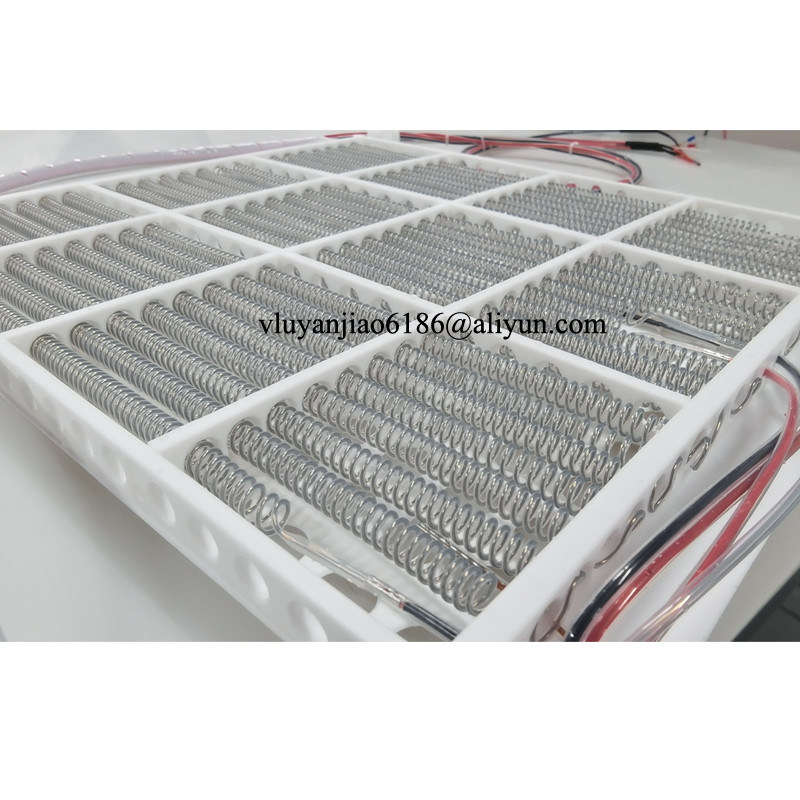

4.8KW 400V Immersion PTFE Frame Heater For Heating Harsh Chemicals

Name: 4.8KW 400V Immersion PTFE Frame Heater For Heating Harsh Chemicals
Brand: Yingxi Trading Company
SKU: PFA Frame Heater 02
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Frame Heater 02

Detail Information

Place of Origin:

China

Brand Name:

Surplus

Certification:

ISO9001

Model Number:

PFA Frame Heater 02

Name:

4.8KW Process Tank Ultrapure PTFEPFA Wetted Surfaces Immersion PFA Frame Heater

Supply Voltage (V/Phase)::

400V Or Others

Power(KW):

4.8

Type Of Temperature Control:

PT100 Or J Type

Application:

Semiconductor, Solar, MEMs, And Other Technological Industries

Frame Material:

PTFE

Inside Material:

PFA

Cable Length:

2 Meters/3meters/others

Highlight:

High Light

Highlight:

Immersion PTFE Frame Heater

400V PTFE Frame Heater

4.8KW Immersion PTFE Heater

Trading Information

Minimum Order Quantity:

1 PCS

Price:

Packaging Details:

Wooden Case or Carton Box

Delivery Time:

10-15 working days

Payment Terms:

TT, Paypal, Western Union

Supply Ability:

50 PC/Month

Product Description

4.8KW 400V Immersion PFA Frame Heater For Heating Harsh Chemicals

4.8KW Process Tank Ultrapure PTFE/PFA Wetted Surfaces Immersion PFA Frame Heater

Products for Semiconductor Manufacturing and Fabrication

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Optional Perforated Grids

Top grids separate heaters from wafer carriers and components to increase the available tank space
Bottom grids separate heaters from the tank floor
Available for all frame sizes
Adds 1/8 inch to height

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 - 20 kW
Voltages	120 - 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft
