Semiconductor PFA Coated Immersion Tank Heaters, Chemical Immersion Heater
Semiconductor PFA Immersion Tank Heaters For Use In High-purity Applications
PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. These heaters provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. Available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.
Features & Benefits
- Ultrapure PTFE/PFA wetted surfaces
- Reliable heating of harsh chemicals
- Maximum power in compact footprint
- Maximum 200°C heating capability
- Fast temperature response and efficiency
- Each configuration capable of various voltage-to-wattage combinations
- Integrate easily into most PVDF, PFA, and quartz wet process tanks
- Sizes for many tank dimensions
- Compact height of 1-5/8 inch
- Safety features include hi-limit sensor and encapsulated ground wire
- No N2 purge required
Harsh Chemicals & DI Water

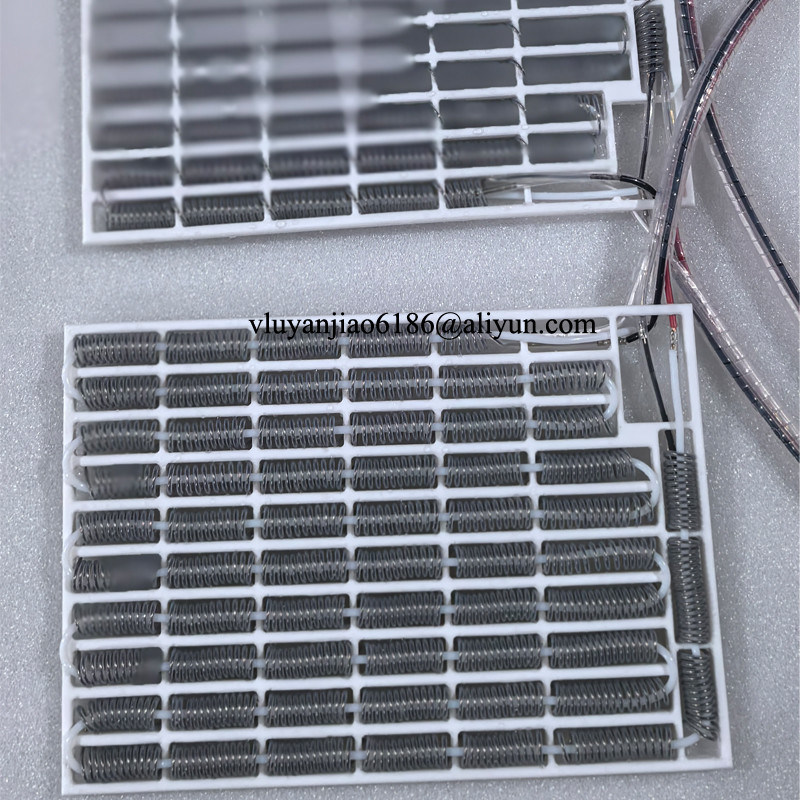

These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW. They feature a low watt density (≤ 4 watts/in²) for fast heating response and integrate easily into most process tanks. Provide us with your specifications and tank size, and we'll build a custom immersion heater for your application.
Applications of PFA Immersion Tank Heaters
- Semiconductor Industry: Heating DI water and other chemicals used in semiconductor manufacturing
- Plating Industry: Heating corrosive solutions used in plating processes
- Pharmaceutical and Biomedical Industries: Heating and maintaining constant temperatures for various fluids
- Research and Development: Heating liquids for lab experiments and research applications
- Process Heating: Heating fluids in industrial processes where chemical resistance is required
Industries
Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing
Applications
Fluid Heating • Filtration • Sterilization & Cleaning
Ultra-Pure Fluid Heaters
We offer a variety of patented and uniquely-engineered ultra-pure precision heaters for heating various chemical and plating solutions, gases, solvents and deionized water. Our award-winning engineers design and manufacture components from PFA, applied to patented PFA heating technology, that achieves a small mass with large surface area, providing faster heater response and longer life at elevated temperatures. Our extremely flexible high-output heating coils can be fashioned into an almost endless variety of shapes and sizes, resulting in heaters that outlast competing products.
Acid Heating And Corrosive Chemical Heating
Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, our fluoropolymer (PTFE) heaters and exchangers are engineered to perform in the most demanding environments.
| TF SERIES |
High-purity, fluoropolymer (PTFE) bottom heater. Single or three phase. 1000-6000 watts, 120-480 volts. |
 |
| HXRL SERIES |
Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts. |
|
| HXO SERIES |
Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts. |
|
| HXF SERIES |
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts. |
|
| HX SERIES |
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Single phase. 500-9000 watts, 120-600 volts. |
|
| X SERIES COIL |
Excellent chemical compatibility and rugged design for heating or cooling applications. All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction. Eliminates stray currents. PFA coils available for steam service up to 60 PSI (10 PSI minimum required). |
|
