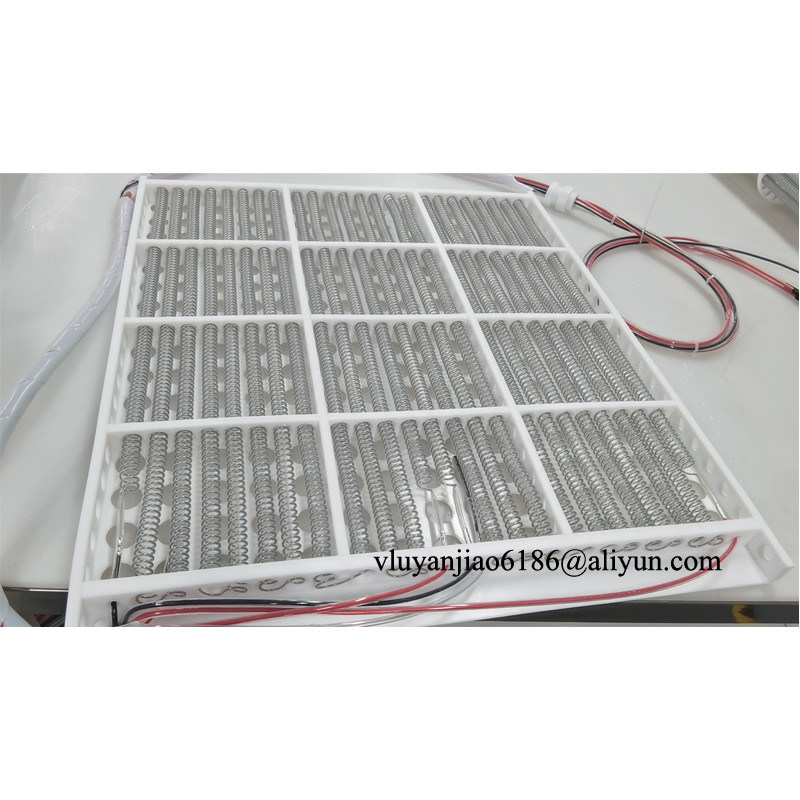

Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry
  • Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry

Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: PFA Immersion Tank Heater 09
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
PFA Immersion Tank Heater 09
Name:
Ultra-Pure Design PFA Immersion Tank Heaters For Semiconductor Industries
Supply Voltage (V/Phase)::
400V 2Phase Or Thers
Power(KW):
2-36kw
Type Of Temperature Control:
PT100 Or J Type
Application:
Semiconductor, Solar, MEMs, And Other Technological Industries
Frame Material:
PTFE
Inside Material:
PFA
Cable Length:
2 Meters/3meters/others
Highlight:

High Light

Highlight:

Electric PFA Heat Exchanger

,

Electric PFA Immersion Tank Heaters

,

PFA Immersion Tank Heaters

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
TT, Paypal, Western Union
Supply Ability:
50 PC/Month
Product Description
Ultra-Pure Design PFA Immersion Tank Heaters for Semiconductor Industries
Benefits
  • Ultra-Pure Design
  • PVDF/PFA Wetted Surfaces
  • Reliable Heating
  • Heats harsh chemicals
  • Max 200°C Heating capability
  • Fully Tested
  • Fast Response
  • Low Watt Density (≤ 4 watts/in²)
  • Compact Design
  • Max power in smallest footprint
  • Grid Heaters - 3/4″ Height
  • Frame Heaters - 1-1/2″ Height
  • No N2 Purge Required
Heaters designed to be easily integrated into most process tanks. Our customers provide us with their specifications and tank size and we can build a heater for them.
Specifications
Heater Element Heating Coil
Wetted Surfaces PFA/PTFE
Wattages 1.0 - 20 kW
Voltages 120 - 480 VAC
1 or 3 phase
Sizes (LxW) 7x5 to 19x14 inch
Height 1-5/8 inch
Temperature 200°C (392°F)
Hi-Limit Sensor Type-J thermocouple
Ground Wire Encapsulated
Lead Wire 15-ft
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 0
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 1
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 2
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 3
Applications
Fluid Heating, Filtration, Sterilization & Cleaning
Ultra-Pure Fluid Heaters
We offer a variety of patented and uniquely-engineered ultra-pure precision heaters for heating various chemical and plating solutions, gases, solvents and deionized water. Our award-winning engineers design and manufacture components from PFA, applied to patented PFA heating technology, that achieves a small mass with a large surface area, providing a faster heater response and a longer life at elevated temperatures. Our extremely flexible high-output heating coils are capable of being fashioned into an almost endless variety of shapes and sizes.
The resulting heaters outlast competing products of lesser capability and are designed into a wide range of standard and customized products.
Other Applications
Anodizing
Anodizing is an electrochemical process of converting a metal surface into an oxide layer. Mainly aluminum is used for anodizing, although other nonferrous metals, such as titanium and magnesium, can also be anodized. The metal part is connected as the anode and immersed into an acid electrolyte bath, where an electric current is applied to grow the oxide layer from the piece. The resulting surface finish will provide functional properties as corrosion-resistance and durability, as well as decorative properties.
Products For Anodizing
MOTS SINGLE - BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 4
MOTS TRIPLE - L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 5
6HS SERIES - TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 6
MOTS TRIPLE - DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 7
MOTS TRIPLE - DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 8
G (GRID) SERIES COIL
Efficient horizontal, vertical and L-shaped Immersion Coils for larger tanks. Available in steel, 316 stainless steel and titanium.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 9
9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 10
6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 11
3HXOL SERIES
Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 3000-18000 watts, 208-480 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 12
HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 13
HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Single phase. 500-9000 watts, 120-600 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 14
3HX SERIES
Low watt density, 3 element heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 1000-6000 watts, 120-600 volts.
Electric PFA Immersion Tank Heaters Ultra Pure Design For Semiconductor Industry 15
