| Place of Origin: | China |
| Brand Name: | Surplus |
| Certification: | ISO9001 |
| Model Number: | PTFE immersion Heater 051 |

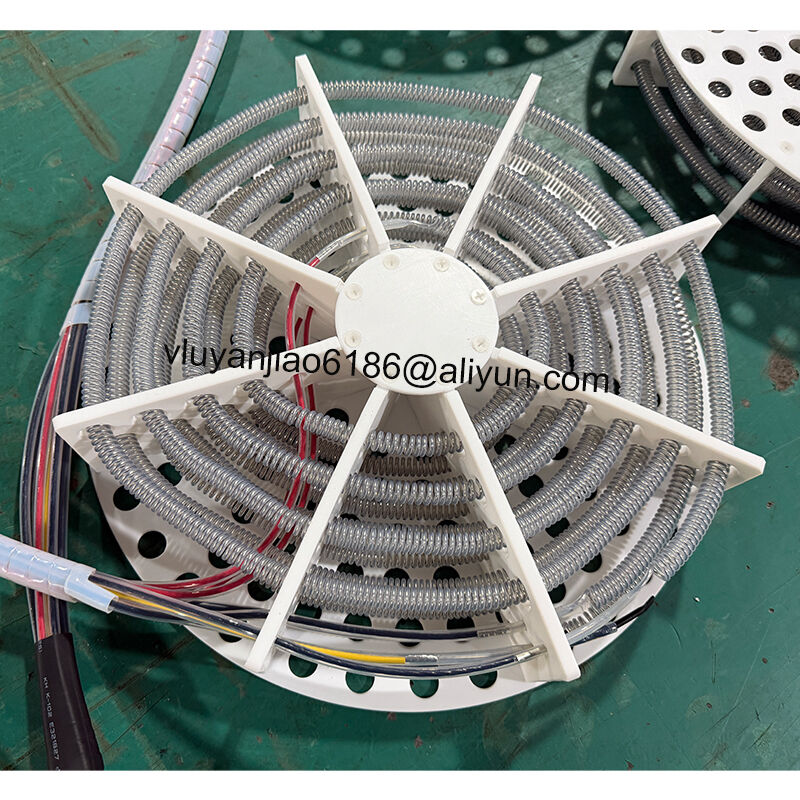

PFA heaters are designed specifically for use as direct electric heaters in plants and tanks where space is at a premium and high heating capacities and excellent resistance to aggressive process liquids are required. The very good chemical resistance of the heating cable is achieved by the use of a special sheath made of FEP or PFA. The surface power density is only 1 W/cm2.
The PFA sheath should be selected for particularly critical operating conditions in extremely aggressive process liquids (such as mixed-acid chrome electrolyte) and for very high liquid temperatures (max. 100°C). The wide range of different shapes and designs provides simple solutions to even difficult installa- tion problems. Small dimensions, combined with relatively high heating powers, permit space-saving installation. The use of high-quality materials guarantees a long operat-ing lifetime with optimum reliability and thus ensures problemfree op-eration of the plant.
Products designed to safely heat IPA and low flash-point solvents, meeting the most stringent cleanliness requirements to support next-generation semiconductor node technologies.
|
PFA Inline Chemical Heater
|
PTFE Inline Chemical Heater
|
Inline Chemical Heater
|
We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used: PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.
|
MOTS SINGLE - BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. 500-6000 watts, 120-480 volts.
|
MOTS TRIPLE - L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. 3000-36000 watts, 200-600 volts.
|
6HS SERIES - TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
|
|
MOTS TRIPLE - DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). 18000-54000 watts, 208-600 volts.
|
G (GRID) SERIES COIL
Efficient horizontal, vertical and L-shaped Immersion Coils for larger tanks. Available in steel, 316 stainless steel and titanium.
|
9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements. Three phase. 3000-18000 watts, 208-600 volts.
|
