180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100
180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100
  • 180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100
  • 180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100
  • 180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100
  • 180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100

180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: PTFE immersion Heater 050
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
PTFE immersion Heater 050
Name:
180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100
Supply Voltage (V/Phase)::
230V
Power(KW):
4.6kw
Type Of Temperature Control:
PT100
Application:
Acid Heating And Corrosive Chemical Heating
Frame Material:
PTFE
Cable Length:
2 Meters/3meters/others
Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
T/T
Supply Ability:
50 PC/Month
Product Description

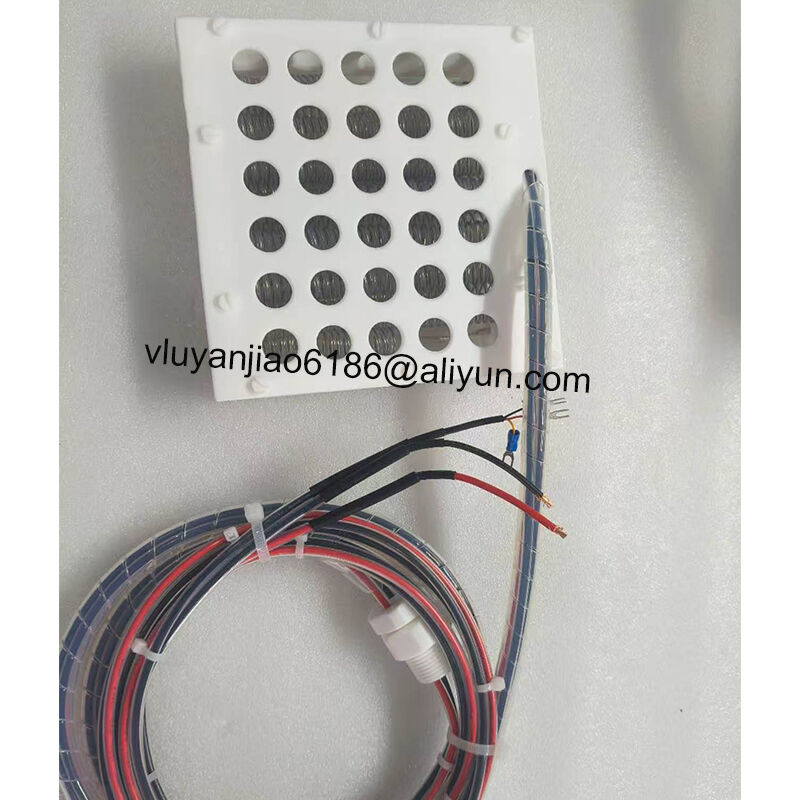

180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100
immersion heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance.

180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100180x180x42 Mm 230V Single Phase 2.8kw PTFE Frame Immersion Heater With PT100

  • Power: approximately 2.8 kW per heater
  • Supply: 230/240 VAC, single phase
  • Target bath temperature: approximately 80–95 °C
  • Liquid flow through heater: approximately 0.5–1.5 L/min
  • Wetted path: PFA/PTFE only; no exposed metal contacting the process liquid
  • Continuous-duty chemical service
  • Compact size



Other Applications



Flammable Solvent Heating

Products designed to safely heat IPA and low flash-point solvents, meeting the most stringent cleanliness requirements to support next-generation semiconductor node technologies.

PFA Inline Chemical Heater
Ultrapure 10-18kW PTFE Wetted Surfaces Inline Chemical Fluid Heater
PTFE Inline Chemical Heater
Ultrapure PTFE Inline Chemical Fluid Heater
Inline Chemical Heater
High Performance Inline Chemical Heater
PTFE Tanks

We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used: PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.

  • Can store acid or alkali
  • High temperature resistance
  • Can custom sizes or even install PFA outlet and PFA inlet
PTFE Tank Example 1
PTFE Tank Example 2
PTFE Tank Example 3
PTFE Tank Example 4
PTFE Tank Example 5
PTFE Tank Example 6
PTFE Tank Example 7
PTFE Tank Example 8
