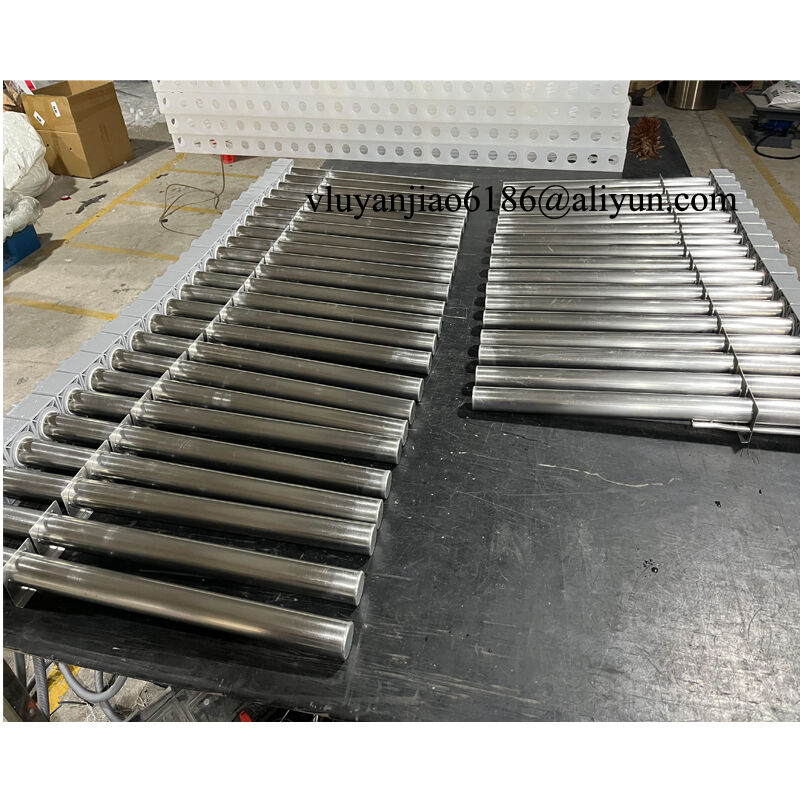

220V 4KW 789mm Stainless Steel 316 Immersion Heater for plating line

Electric Immersion Heaters are ideal for direct heating of nearly all process liquids and corresponding applications. Excellent chemical resistance is ensured by various immersion tube materials and variable fitting options to meet individual heating installation requirements.

Constructed on a modular basis, our immersion heaters consist of:

• A durable tube
• A long-life heating cartridge
• A terminal casing
• The lead

We offer optimal materials for every application. The heated length (minimum immersion depth) is marked by a ring at approximately two-thirds of the tube length. The tube remains unheated above this mark, and the heated portion must always remain covered with liquid, even during high liquid level fluctuations.

Our heating cartridges feature ceramic groove bodies with high electrical insulation values and excellent mechanical strength. A high-temperature resistance heating wire is fitted as a coil to optimize heat radiation from tube to liquid. Available in rated power voltages up to 500 volts for single, two, and three-phase connections.

Products designed to safely heat IPA and low flash-point solvents, meeting stringent cleanliness requirements for next-generation semiconductor technologies.

PFA Inline Chemical Heater

PTFE Inline Chemical Heater

Inline Chemical Heater

An electrochemical process converting metal surfaces into oxide layers, primarily for aluminum but also applicable to titanium and magnesium. Our heaters provide precise finishes while our power supplies deliver high current, accuracy, and energy efficiency for modern anodizing processes.

MOTS SINGLE - BOTTOM, DERATED Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. 500-6000 watts, 120-480 volts.	MOTS TRIPLE - L SHAPED L-shaped, bottom style metal over the side heater. Three phase. 3000-36000 watts, 200-600 volts.	6HS SERIES - TUBULAR Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
MOTS TRIPLE - DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). 18000-54000 watts, 208-600 volts.	MOTS TRIPLE - DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). 18000-54000 watts, 208-600 volts.	G (GRID) SERIES COIL Efficient horizontal, vertical and L-shaped Immersion Coils for larger tanks. Available in steel, 316 stainless steel and titanium.

We offer PTFE-lined welded tanks, small vessels, mixers, and more. Materials include PTFE, PFA, FEP, ECTFE, PVDF with etching or glass backing. Our tanks feature:

• Acid and alkali storage capability
• High temperature resistance
• Custom sizing options
• PFA outlet and inlet installation
