Home > Products >
PTC Heaters
>

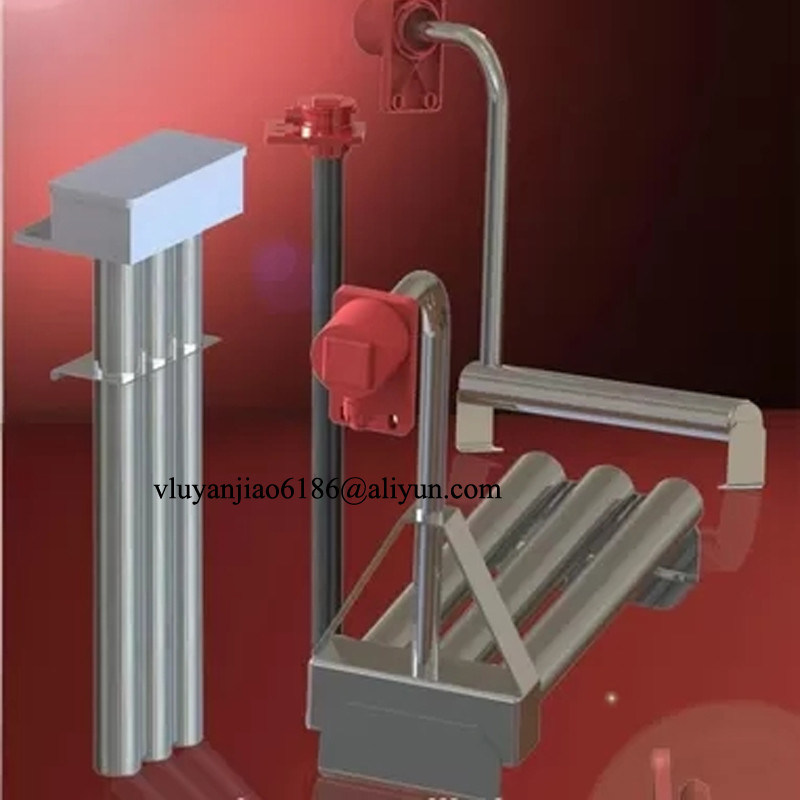

Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material
  • Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material
  • Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material

Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: PTC heaters 07
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
PTC heaters 07
Supply Voltage (V/Phase)::
110-120 Volt, 200-240 Volt, And 380-480 Volt.
Power(KW):
1,000 Watts (1kW) To 6,000 Watts (6kW).
Dimension:
According Customer's Requirement
Type Of Temperature Control:
PT100 Or J Type
Application:
Semiconductor, Solar, MEMs, And Other Technological Industries
Material:
SUS316 Or Titanium
Cable Length:
2 Meters/3meters/others
Highlight:

High Light

Highlight:

Electric PTC Immersion Heater

,

SS316 PTC Immersion Heater

,

304 Stainless Steel Immersion Heater

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
TT, Paypal, Western Union
Supply Ability:
50 PC/Month
Product Description
PTC Non-dry Burning Electric Immersion Heater
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 0
Heaters' elements are PTC positive temperature coefficient semiconductors - making the heaters self-limiting. They reach a set maximum sheath temperature (which is below the ignition point of most combustible materials), making them especially safe for process applications.
LONG ELEMENT LIFE
  • PTC heater element lasts longer than conventional heaters
  • Will not burn out if run in air
  • Will not burn out due to scale or sludge buildup
SAFE DESIGN
  • Heater self limits its maximum operating temperature to 250°C (below ignition point of most plastics)
  • Will not melt tanks when a 1/2" (12mm) minimum distance is maintained
  • Overtemperature protection devices are not required
  • Safety is built-in, not added on
  • Metal-grounded construction (earth ground)
  • Non-floating construction
SPECIFICATIONS
Sizes: 1,000 watts (1kW) to 6,000 watts (6kW)
Voltages: Three ranges available: 110-120V, 200-240V, and 380-480V. Available in single or three phase power.
CORROSION RESISTANT HEADS
Vapor-resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.
OUTSTANDING PERFORMANCE
  • Watt densities of 4 watts/cm² ensure long service life
  • Auto-stabilizing solid state element prevents hot spots and ensures uniform heating
  • Heater derates itself in highly viscous and high temperature solutions
Consult factory for sizing assistance.
CHEMICALLY RESISTANT
For use in most aqueous alkaline, electroplating and rinse solutions. Available sheath materials:
  • 304 stainless steel
  • 316 stainless steel
  • Titanium
Check our Solution Guide or with your chemical supplier for recommended sheath material.
CUSTOM OPTIONS
Consult factory for:
  • Longer wire and conduit lengths
  • Extended cold zones
  • Temperature and level controls sized to match the heater
We recommend temperature controls and level controls for use with this immersion heater.
Other Applications
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Our products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
Electrochemical Deposition Products
HXSL SERIES
Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 1
HXRL SERIES
Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 2
HXO SERIES
Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 3
Acid Heating And Corrosive Chemical Heating
Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, our fluoropolymer (PTFE) heaters and exchangers are engineered to perform.
Acid Heating And Corrosive Chemical Heating Products
3HX Series
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 4
HXT SERIES - SCREWPLUG
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 5
9HX SERIES
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 6
6HX SERIES
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 7
3HXOL SERIES
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 8
HXSL SERIES
Non Dry Burning Electric PTC Immersion Heater With Stainless Steel 304 316 Material 9

Tags:

PTC Over The Side Heater,

PTC Immersion Heater,

Stainless Steel Immersion Heater
