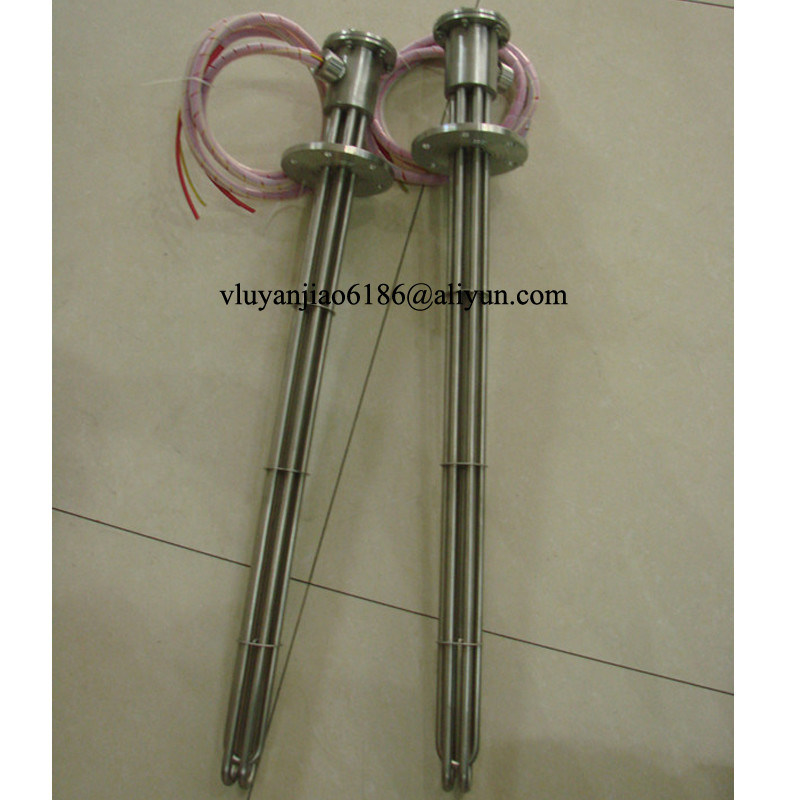

Flange Electric Immersion Heater SUS316 Titanium Immersion Heating Element Customized
Flange Electric Immersion Heater SUS316 Titanium Immersion Heating Element Customized
Product Details:
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
metal immersion heater 06
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
metal immersion heater 06
Supply Voltage (V/Phase)::
110-120 Volt, 200-240 Volt, And 380-480 Volt.
Power(KW):
1,000 Watts (1kW) To 6,000 Watts (6kW).
Dimension:
According Customer's Requirement
Type Of Temperature Control:
PT100 Or J Type
Application:
Process Heating, Power, Chemical, Oil And Gas, Pharmaceuticals, Metals Processing To The Food & Beverage Industry
Material:
SUS316 Or Titanium
Cable Length:
2 Meters/3meters/others
Highlight:
High Light
Highlight:
Flange Electric Immersion Heater
,
Titanium Immersion Heating Element
,
Immersible Heating Element Customized
Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
TT, Paypal, Western Union
Supply Ability:
50 PC/Month
Product Description
Flange Electric Immersion Heater SUS316 Titanium Immersion Heating Element Customized
SUS316/Titanium Flange Electric Process Metal Immersion Heaters
SURPLUS metal immersion heaters are engineered for corrosive chemical heating applications, available in multiple configurations including open tank, screw plug, and flange designs. Our product range spans from compact 500-watt units for laboratory use to powerful 50,000-watt industrial systems.
Product Features
Constructed with titanium, SUS316 or SUS304 seamless tubes in vertical configuration with three 50mm diameter elements
Power output customized based on installation location, liquid chemical properties, and solid content deposition
Hot-zone length varies with wattage, while cold-zone length is adjustable to meet equipment requirements
Safety-designed with hot-zone positioned at least 100mm below chemical liquid level
Available in multiple voltages: 110V/P, 220V/P, 380V/P, 220V/3P, 380V/3P, 415V/3P, 480V/3P
Power range from 0.5KW to 36KW with standard overheat protection switch or heat detector
CE certified for reliability and extended service life
Key Advantages
Ideal for aqueous alkaline solutions, plating, and phosphate tanks
Available in heavy wall metal sheaths: steel, 304 stainless steel, 316 stainless steel, titanium
High watt density up to 35 watts per square inch (5.4 w/cm²) for long service life
Vapor-resistant, flame retardant polypropylene terminal enclosure with 3 ft flexible PVC conduit
Custom temperature and level controls available
Lower watt density options for viscous solutions
Technical Specifications
Wattage Range
3,000 to 36,000 Watts
Voltage Range
200 to 600 Volts
Temperature Range
Up to 180°C (82°F)
Safety Features
Custom configurations and lengths available
Extended wire and conduit options
All-metal welded junction box
Grounded construction
Built-in thermal protector
Replaceable protector standard for solutions up to 180°F (82°C)
Precious Metal Deposition Applications
Engineered for precision requirements in precious metals deposition, our heaters reduce material waste while delivering clean, smooth direct current (DC) for accurate results.
