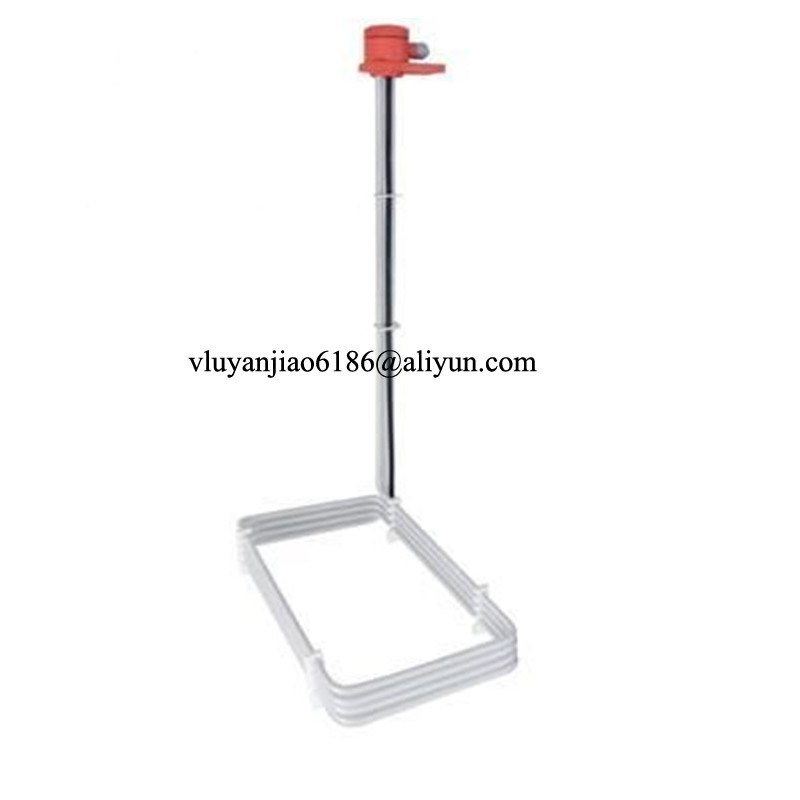

Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing
  • Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing

Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: PTFE immersion Heater 20
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001
Model Number:
PTFE immersion Heater 20
Name:
Bottom Heating Fluoropolymer(PTFE) Electric Immersion Heater For Surface Finishing
Supply Voltage (V/Phase)::
110V-480V
Power(KW):
1KW-36KW
Type Of Temperature Control:
Overheat Protection
Application:
Acid Heating And Corrosive Chemical Heating
Frame Material:
PTFE
Inside Material:
SUS
Cable Length:
2 Meters/3meters/others
Highlight:

High Light

Highlight:

PTFE Coated Electric Immersion Heater

,

Bottom Heating Electric Immersion Heater

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Contact Us
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
TT, Paypal, Western Union
Supply Ability:
50 PC/Month
Product Description
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing
Product Description
Excellent chemical resistance to aggressive acids.
Features
  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C)
  • Low watt density design 10 watts/square inch (1.5w/cm²)
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit
  • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C)
  • Certification: cULus, CE certified and CSA
Specifications
Power Range 3000 - 18000 watts
Voltage 120 to 600 volts (600 volts on 12,000 watts or lower only)
Options Available (Consult Factory)
  • Resettable thermal protectors
  • Polypropylene guards (sold separately)
  • Custom configurations and lengths
  • Custom wire and conduit lengths
Flat Assembly Type - PTFE Immersion Heater
Universal 'all plastic' model ideal for important powers (from 6kW) up to 48 kW. Ideal for large tanks. Universal model for all types of installation such as side of tank, bottom of tank with feet or on slidings. Rigid structure ideal for important powers. Assembly type F on a plastic rod frame PVDF or PP. Standard configuration: heating cable coated Teflon® FEP and PP or PVDF rod frame. For use on the side or at the bottom of the tank.
Other Applications
Ultra-High-Purity Heating
Designed with Ultra-High-Purity processes in mind, Surplus delivers clean-room assembled, reliable heating and power solutions to fit specific needs.
Products For Ultra-High-Purity Heating
Inline Heater
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 0
PFA Inline Heater
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 1
Inline Chemical Heater
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 2
PTFE Tanks
We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below. Material used: PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing. Can store acid or alkali, high temperature resistance. Can custom sizes or even install PFA outlet and PFA inlet.
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 3
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 4
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 5
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 6
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 7
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 8
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 9
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 10
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 11
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
Electrochemical Deposition Products
MOTS TRIPLE - VERTICAL
L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 12
9HS SERIES - TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 13
V SERIES - VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 14
MOTS SINGLE
Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 15
MOTS SINGLE - DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater - Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 16
MOTS TRIPLE - L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.
Bottom Heating PTFE Coated Electric Immersion Heater For Surface Finishing 17
