| Place of Origin: | China |
| Brand Name: | Surplus |
| Certification: | ISO9001,CE |
| Model Number: | PTFE Tank 023 |

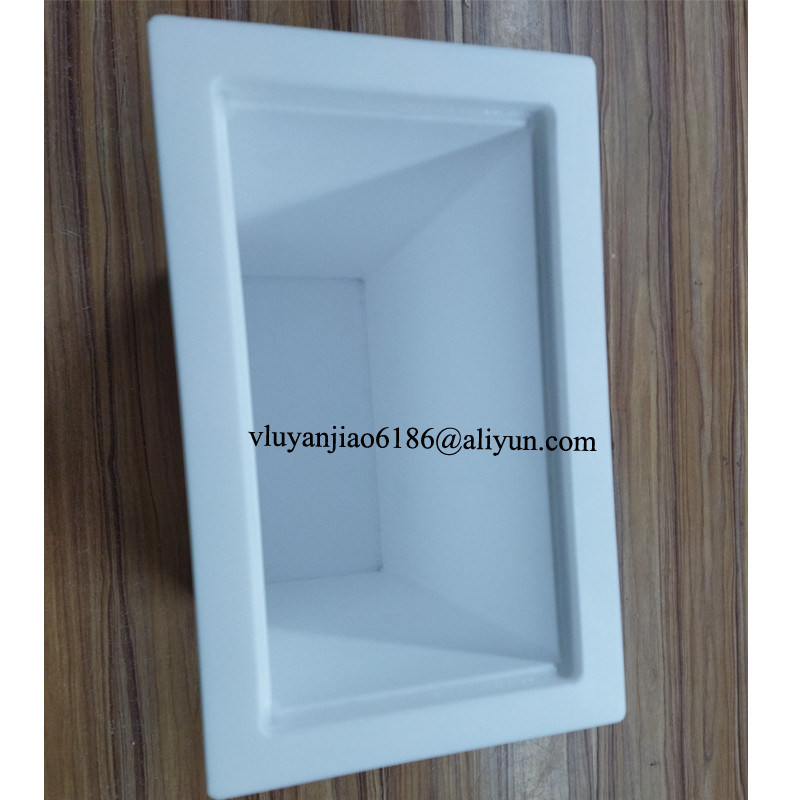

Welded PTFE Bath PTFE Wet Process Tanks for the Semiconductor Industry are available in a comprehensive range of dimensions and volumes to meet diverse requirements. In addition to standard configurations, PTFE tanks can be custom-produced with different sizes, wall thicknesses, or modified flange designs per customer specifications.
Seamless integration of supply and drain ports in any placement and design is available. Standard wall and floor thicknesses for rectangular and circular tanks range from 10 to 12 mm. Flange dimensions are 20 mm wide (including tank wall) and 15 mm high. Tanks can be constructed from standard PTFE or modified PTFE materials.
A comprehensive range of accessories is available, including supply and drain ports, supply blocks, water-jet pumps, supports, and hinged PTFE lids. Our product line includes all necessary components to supplement electronic control units and implement complex process solutions. With extensive industry expertise, we provide support during the planning stage.
| Model | PTFE Process Tank |
|---|---|
| Tank Material | PTFE (thickness dependent on tank size) |
| Construction | Folded corner origami, flushed weld seams |
| Connections | PFA Flared stems standard |
| Max. operating temperature | 100-200°C* |
| Optional Cooling Coils | Corrugated PFA tube |
| Limited Warranty | One Year |
Engineered to meet stringent requirements, our heaters for Precious Metals Deposition provide accurate and reliable performance while reducing materials waste. Low ripple power supplies deliver clean, smooth direct current (DC) for precision results and material savings.
|
MOTS SINGLE MOTS Single Heater - Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.
|
MOTS SINGLE - DAS, PHOSPHATE MOTS Single DAS Phosphate Heater - Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.
|
MOTS TRIPLE - L SHAPED, DERATED Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.
|
|
MOTS SINGLE - BOTTOM, DERATED Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.
|
MOTS TRIPLE - L SHAPED L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.
|
6HS SERIES - TUBULAR Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
|
