Home > Products >
PTFE Wet Process Tanks
>
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing
  • Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing

Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001,CE
Model Number: PTFE Tank 17
Detail Information
Place of Origin:
China
Brand Name:
Surplus
Certification:
ISO9001,CE
Model Number:
PTFE Tank 17
Name:
PTFE Wet Process Tank With PTFE Frame Heater For Electropolishing
Material:
PTFE
Production Process:
One-piece Molding Or Double-sided Welding
Dimension:
According Customer's Requirement
Highlight:

High Light

Highlight:

Industrial PTFE Wet Process Tanks

,

PTFE Wet Process Tanks With Heater

,

Industrial PTFE Tanks For Electropolishing

Trading Information
Minimum Order Quantity:
1 PCS
Price:
Negotiable
Packaging Details:
Wooden Case or Carton Box
Delivery Time:
10-15 working days
Payment Terms:
T/T,
Supply Ability:
50 PC/Month
Product Description
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing

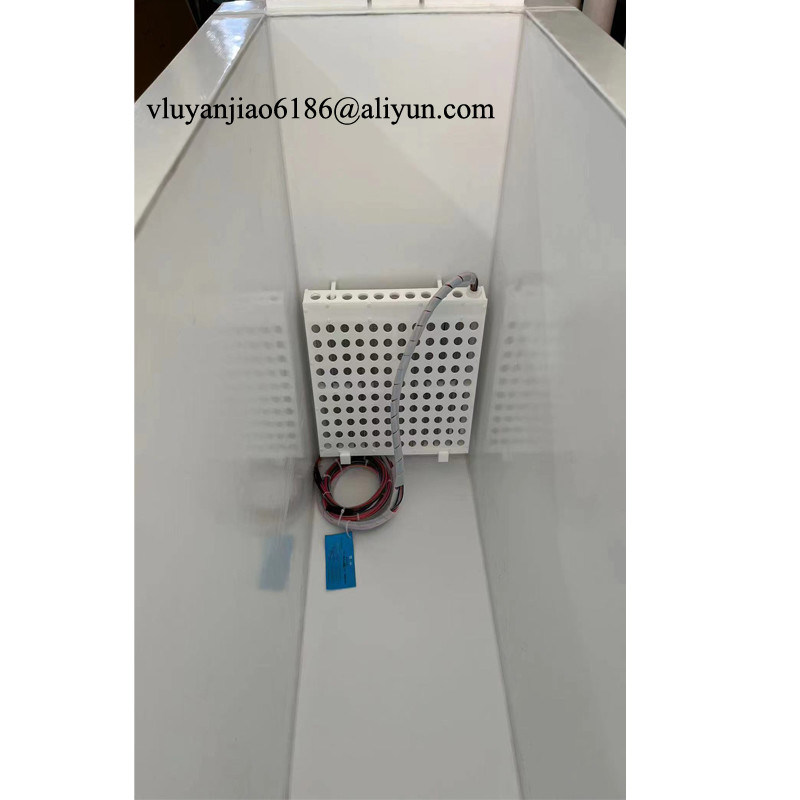

PTFE Wet Process Tank With PTFE Frame Heater For Electropolishing
Overview
Steel-lined plastic electrolytic cells are widely used in industrial pickling industries such as metallurgy and electroplating:
  • Used for pickling the surface of titanium-nickel alloy, stainless steel and other copper and aluminum metals to remove oil and rust
  • Promotes the removal of stubborn oxide scale on the metal surface
Surplus designed process and rinse tanks are constructed from a single sheet of application specific plastic material that is CNC machined and then folded into the form of your tank using the "ORIGAMI" method. Welded corners can create particle/contamination traps and can leak due to workmanship, thermal cycling, and/or prolonged chemical exposure. However, the "ORIGAMI" method minimizes welding and provides smooth, seamless, rounded interior corners.
The "ORIGAMI" design and fabrication approach combined with over 40 years of wet process experience provides optimum process and rinse results at the lowest possible cost.
PTFE tanks are available in configurations for all substrate and cassette sizes in standard or custom designs. Review your tank application and requirements with our sales staff to receive a cost-effective quotation in a timely manner. Sales drawings of standard tanks are available upon request.
PTFE Wet Process Tank Features
Custom-mode product to be manufactured by our experienced welders to the satisfaction of the customer. The maximum size we delivered is 2.0 m × 2.5 m × 2.0 m.
PTFE Wet Process Tank Main Applications
  • Washing tank (Silicon wafer etc.)
  • Washing tank for temperature control
  • Storage of chemical
PTFE Wet Process Tank Characteristics
  • The mold is not required, and is economical for smaller lots
  • Free designs are possible to meet various needs
Industries
Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing
Other Applications
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
Electrochemical Deposition Products
MOTS TRIPLE - DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 0
MOTS TRIPLE - DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 1
MOTS TRIPLE
Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 2
9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 3
6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 4
3HXOL SERIES
Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 3000-18000 watts, 208-480 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 5
HXSL SERIES
Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 6
HXRL SERIES
Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 7
HXO SERIES
Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 8
HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 9
HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Single phase. 500-9000 watts, 120-600 volts.
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 10
Flammable Solvent Heating
Products designed to safely heat IPA and low flash-point solvents, meeting the most stringent cleanliness requirements to support next-generation semiconductor node technologies.
Products For Flammable Solvent Heating
PFA Inline Chemical Heater
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 11
PTFE Inline Chemical Heater
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 12
Inline Chemical Heater
Custom Industrial PTFE Wet Process Tanks With Heater For Electropolishing 13

Tags:

Teflon Lined Tanks,

PTFE Overflow Tank,

Integrated PTFE Tank
